Starting System Connector End View
Starting System Connector End View

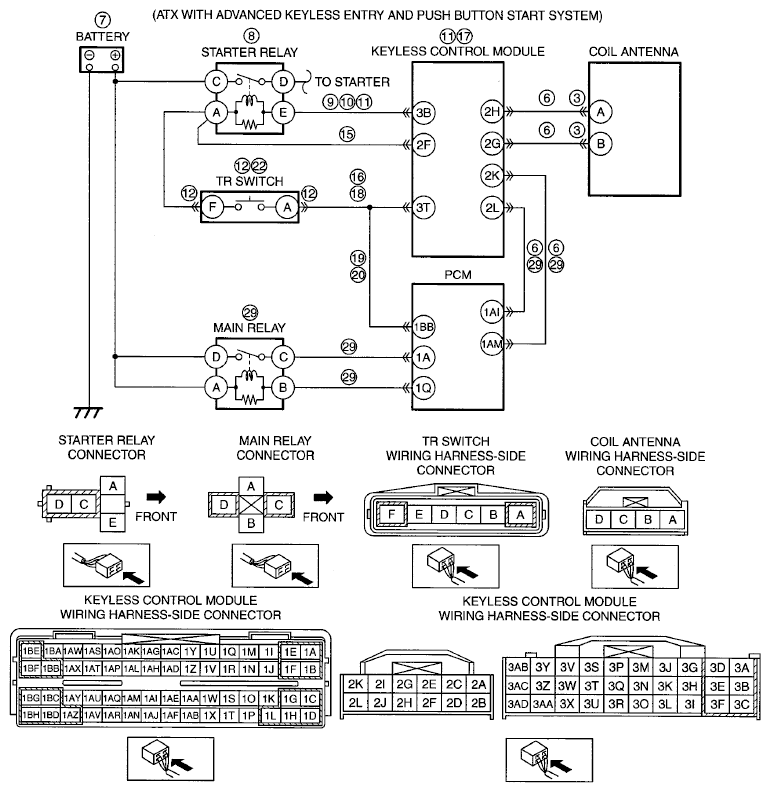

Fig 1: Starting System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
