Front Combination Light And Main Fuse Block Connector End View

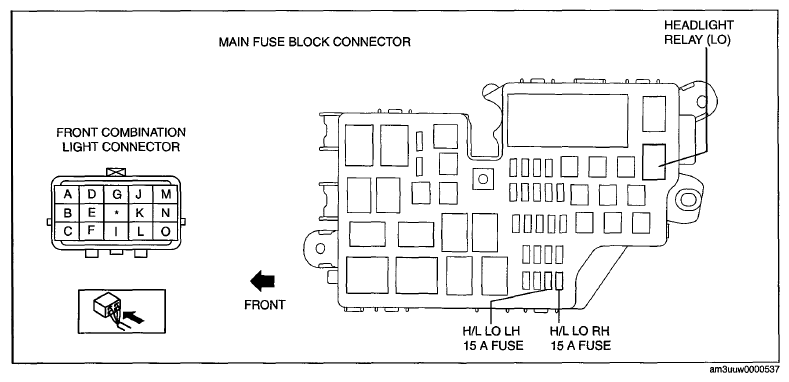

Fig 1: Front Combination Light And Main Fuse Block Connector End View

G06732090

Courtesy of MAZDA MOTORS CORP.
