Driver-Side Pre-Tensioner Seat Belt And SAS Control Module Connector End View

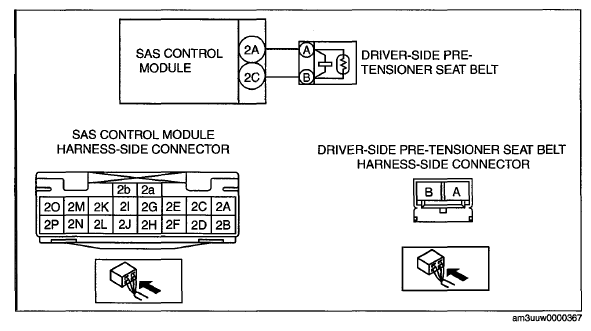

Fig 1: Driver-Side Pre-Tensioner Seat Belt And SAS Control Module Connector End View
G06731414Courtesy of MAZDA MOTORS CORP.
