ABS Wheel Speed Sensor Connector End View

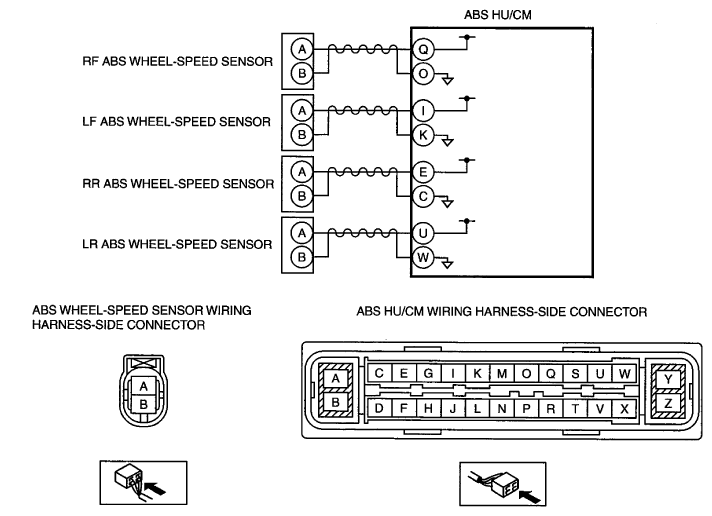

Fig 1: ABS Wheel Speed Sensor Connector End View

G06730994

Courtesy of MAZDA MOTORS CORP.
