Air Gap Inspection
- Verify that the CKP sensor is securely installed.

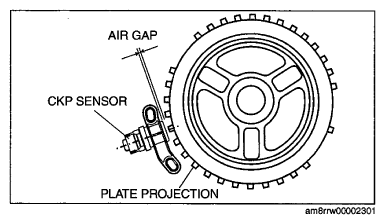

- Using a thickness gauge, measure the air gap between the plate projections at the back of crankshaft pulley and the CKP sensor.
- If not within the specification, inspect the plate projections for cracks or bending.
- If there is any malfunction, replace the crankshaft pulley. (See FRONT OIL SEAL REPLACEMENT .)
CKP sensor air gap
0.5-1.5 mm {0.02-0.05 in}
- If not within the specification, inspect the plate projections for cracks or bending.
