Fuel Injector Removal/Installation: Notes

  1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] .)
  3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF, L5] .)
  4. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  5. Disconnect the fuel injector connector.
  6. Remove in the order indicated in the table.

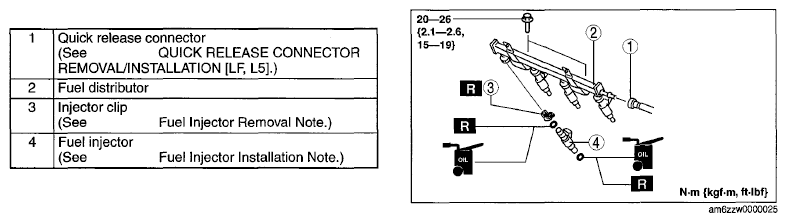

    Fig 1: Exploded View Of Fuel Injector With Torque Specifications
    G06732465Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
