DSC HU/CM, Bracket Removal Note

  1. As shown in the illustration, move the bracket in the direction of the arrow and remove the DSC HU/CM and bracket from the body.

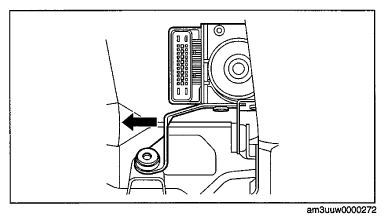

    Fig 1: Removing DSC HU/CM And Bracket
    G06733249Courtesy of MAZDA MOTORS CORP.
