Vehicles With Auto Light/Wiper System

Remove the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION .)
Make a tool as shown in the illustration using wire.
CAUTION:
- Using the tool with bare hands can cause injury. Always wear gloves when using the tool.
- To prevent damage to the lens, do not use a flathead screwdriver.

  Fig 1: Identifying Tool
  Courtesy of MAZDA MOTORS CORP.

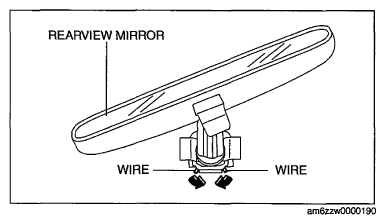

Push the wire in the direction of the arrow shown in the illustration.

Fig 2: Identifying Wire Pushing Direction
Courtesy of MAZDA MOTORS CORP.
Insert a tool into the position shown in the illustration and release the tab in the direction of the arrow in illustration.
CAUTION:
- Perform the procedure while being careful not to damage the lens.

  Fig 3: Inserting Tool Into Position
  Courtesy of MAZDA MOTORS CORP.
Pull the rearview mirror in the direction of the arrow shown in the illustration and remove it.
CAUTION:
- When removing the rearview mirror, it may hit the headliner and cause a damage. Hold the rearview mirror with hands and be careful not to contact it with the headliner.

  Fig 4: Identifying Rearview Mirror Pulling Direction
  Courtesy of MAZDA MOTORS CORP.
