Outer Mirror Garnish Removal/Installation

  1. Remove the outer mirror glass from the outer mirror. (See OUTER MIRROR GLASS REMOVAL .)
  2. Pinch the end of the tab which is visible, and release the tab by pressing it toward the vehicle front (3 locations).

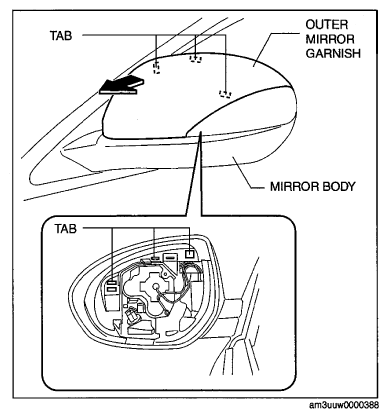

    Fig 1: Identifying Outer Mirror Garnish Tabs
    G06731853Courtesy of MAZDA MOTORS CORP.
  3. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow in illustration.
  4. Install in the reverse order of removal.

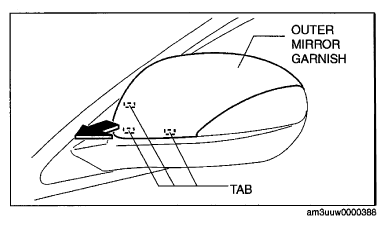

    Fig 2: Identifying Outer Mirror Garnish Tabs
    G06731854Courtesy of MAZDA MOTORS CORP.
