Using M-MDS

CAUTION:
  • Perform with the vehicle in an unloaded condition (no occupants; spare tire, jack and tools are in designated positions).
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select "Electrical".
      2. Select "Exterior Lighting".
      3. Select "Headlamp".
      4. Select "Auto Leveling Sensor Re-zero Procedure"
    • When using the PDS (Pocket PC)
      1. Select the "All Tests and Calibrations".
      2. Select "Auto Leveling Sensor Re-zero Procedure".
      3. Perform the procedure according to the directions on the screen.

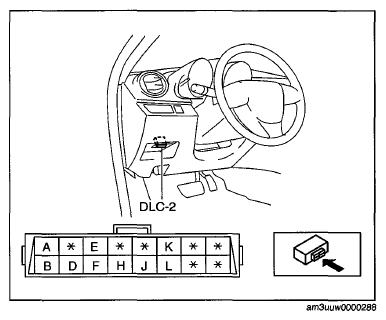

        Fig 1: Identifying Data Link Connector (DLC-2)
        G06732179Courtesy of MAZDA MOTORS CORP.
