DTC P2127:00: Notes
DTC P2127:00 (LF, L5) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2127:00 |
APP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from APP sensor No. 2 when the engine is running. If the input voltage is less than 0.2 V
, the PCM determines that the APP sensor No. 2 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

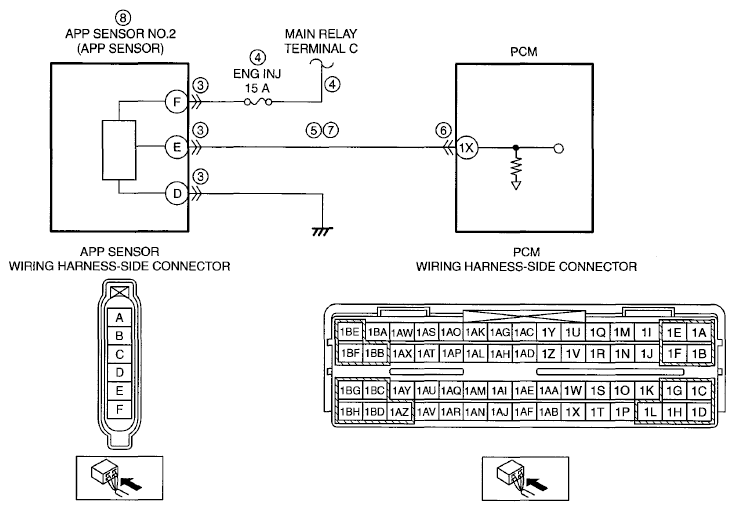

| POSSIBLE CAUSE |
- APP sensor connector or terminals malfunction
- Short to ground or open circuit in APP sensor No. 2 power supply circuit
- Short to ground in wiring harness between main relay terminal C and APP sensor terminal F
- ENG INJ 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal C and APP sensor terminal F
- Short to ground in wiring harness between APP sensor terminal E and PCM terminal 1X
- PCM connector or terminals malfunction
- Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1X
- APP sensor No. 2 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
