DTC P0137:00: Notes

DTC P0137:00 (LF, L5) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0137:00	HO2S circuit low input
DETECTION CONDITION	The PCM monitors input voltage from HO2S. If the input voltage from the HO2S is below -1.15 V or HO2S bias voltage below 1.3 V for 5 s while the HO2S is active, the PCM determines that circuit input is low. Diagnostic support note This is a continuous monitor (A/F sensor, HO2S). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

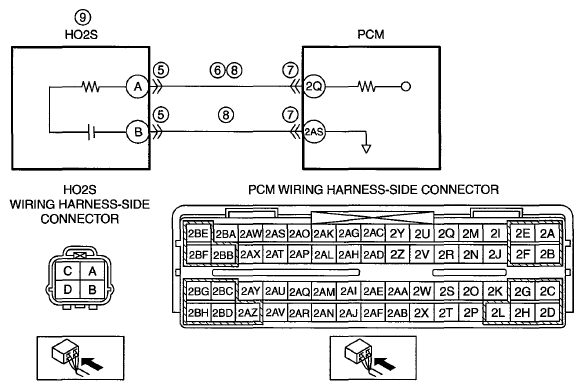

POSSIBLE CAUSE	HO2S connector or terminals malfunction Short to ground in wiring harness between HO2S terminal A and PCM terminal 2Q PCM connector or terminals malfunction Open circuit in wiring between the following terminals: HO2S terminal A-PCM terminal 2Q HO2S terminal B-PCM terminal 2AS HO2S malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
