Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [LF, L5]
>>
Control System Diagram
Control System Diagram

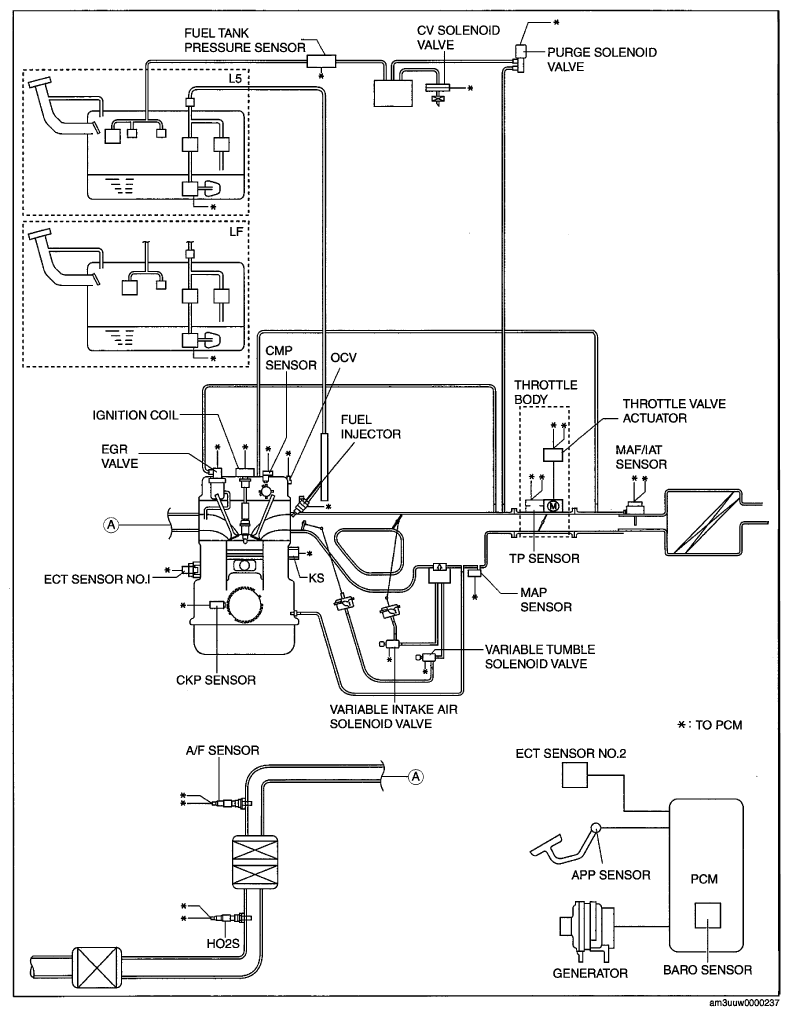

Fig 1: Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
