Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Air Flow Mode Actuator | Behind center of dash. See Figure. |

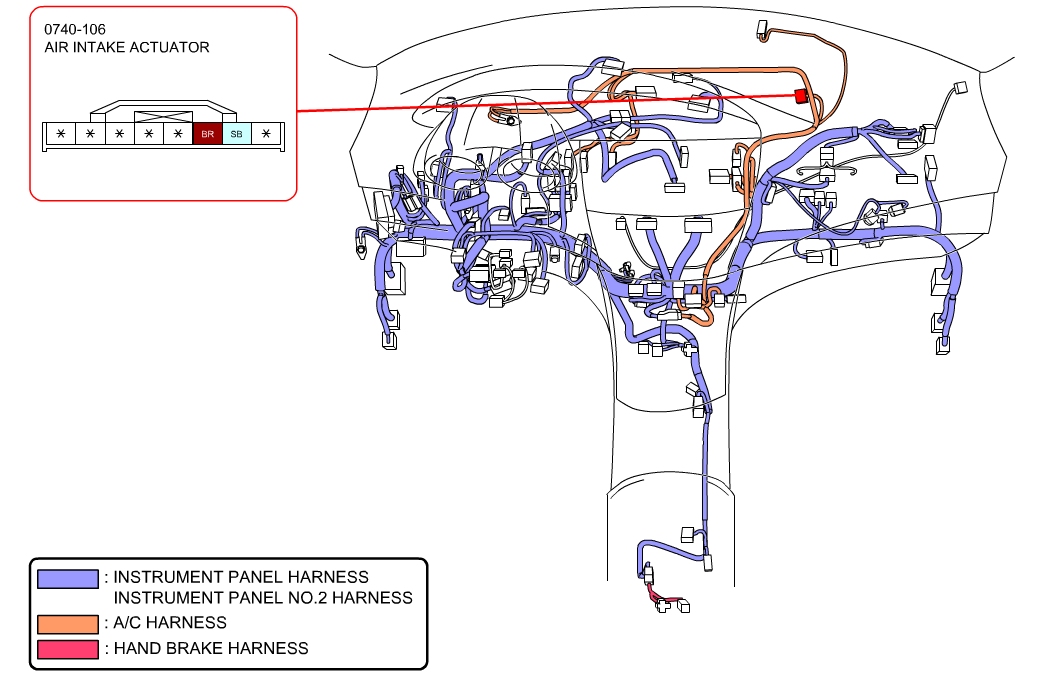

| Air Intake Actuator | Behind right side of dash. See Figure. |

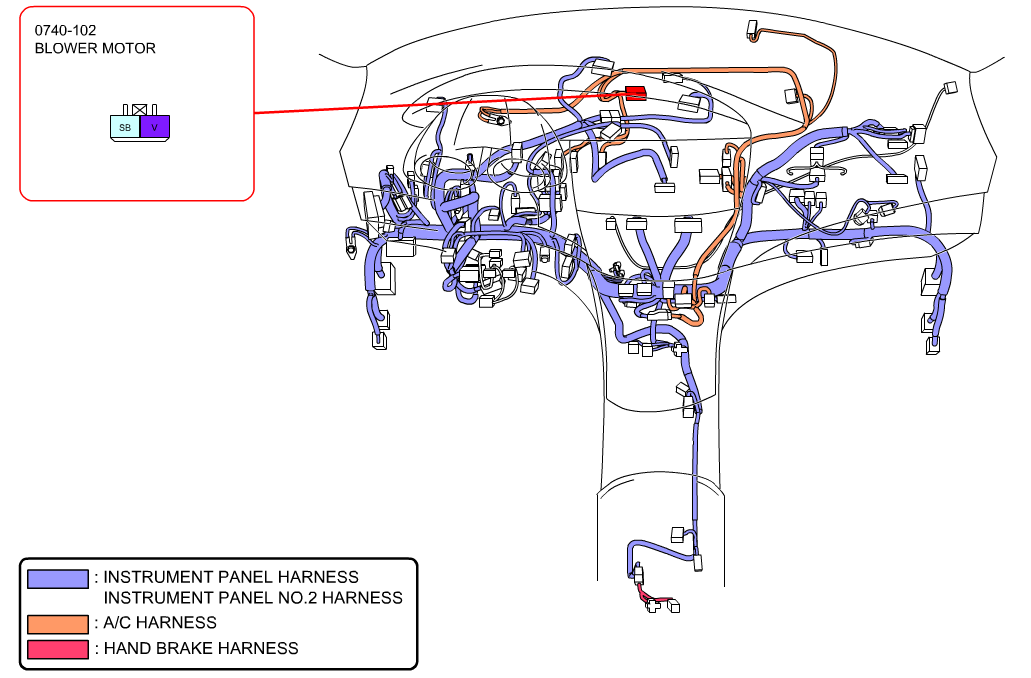

| Blower Motor | Behind center of dash. See Figure. |
| Driver's Side Air Mix Actuator | Behind center left of dash. See Figure. |
| Front Door Latch & Lock Actuator (Left) | In driver's door. |
| Front Door Latch & Lock Actuator (Right) | In front passenger's door. |
| Fuel Pump Unit | On fuel tank. |
| Headlight Leveling Actuator (Left) | Behind left headlight. See Figure. |
| Headlight Leveling Actuator (Right) | Behind right headlight. See Figure. |
| Liftgate Lock Actuator | In liftgate. |
| Power Window Motor (Left Front) | In left front door. |
| Power Window Motor (Left Rear) | In left rear door. |
| Power Window Motor (Right Front) | In right front door. |
| Power Window Motor (Right Rear) | In right rear door. |
| Rear Door Latch & Lock Actuator (Left) | In left rear door. |
| Rear Door Latch & Lock Actuator (Right) | In right rear door. |
| Rear Wiper Motor | In center of liftgate. |
| Recliner Motor & Position Sensor | Under driver's seat. |
| Slider Motor And Position Sensor | Under driver's seat. |
| Starter | Left side of engine. |
| Sunroof Motor | At front of sun roof opening. |
| Throttle Body (Except Turbo) | Left rear of engine. See Figure. |
| Throttle Body (Turbo) | Left side of engine. See Figure. |
| Tilt Motor And Position Sensor (Front) | Under driver's seat. |
| Tilt Motor And Position Sensor (Rear) | Under driver's seat. |
| Trunk Lid Latch & Release Actuator | Center rear of trunk. |
| Washer Motor (W/O Auto Light) | Right front corner of engine compartment. |
| Windshield Washer Motor (W/Auto Light) | Right front corner of engine compartment. |
| Windshield Wiper Motor | Left rear of engine compartment. |
