Manual Transaxle [Shift Mechanism]
>>
Manual Transaxle Shift Mechanism Removal/Installation
>>
A26M-R
>>
Main shift cable and main select cable removal note
Main shift cable and main select cable removal note
Remove the both shift cable end and select cable end using a fastener remover.

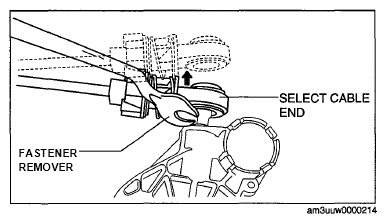

Fig 1: Removing Both Shift Cable End And Select Cable End Using Fastener Remover
Courtesy of MAZDA MOTORS CORP.
