Child-Restraint Seat Anchor Removal/Installation: 4SD

  1. Remove the cover.
  2. Remove the bolt and child-restraint seat anchor.
  3. Install in the reverse order of removal.

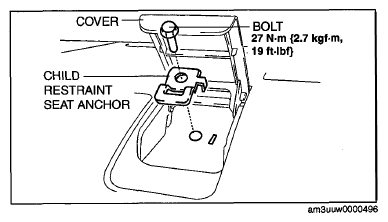

    Fig 1: Child-Restraint Seat Anchor, Cover And Bolt With Torque Specifications
    G06731721Courtesy of MAZDA MOTORS CORP.
