Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

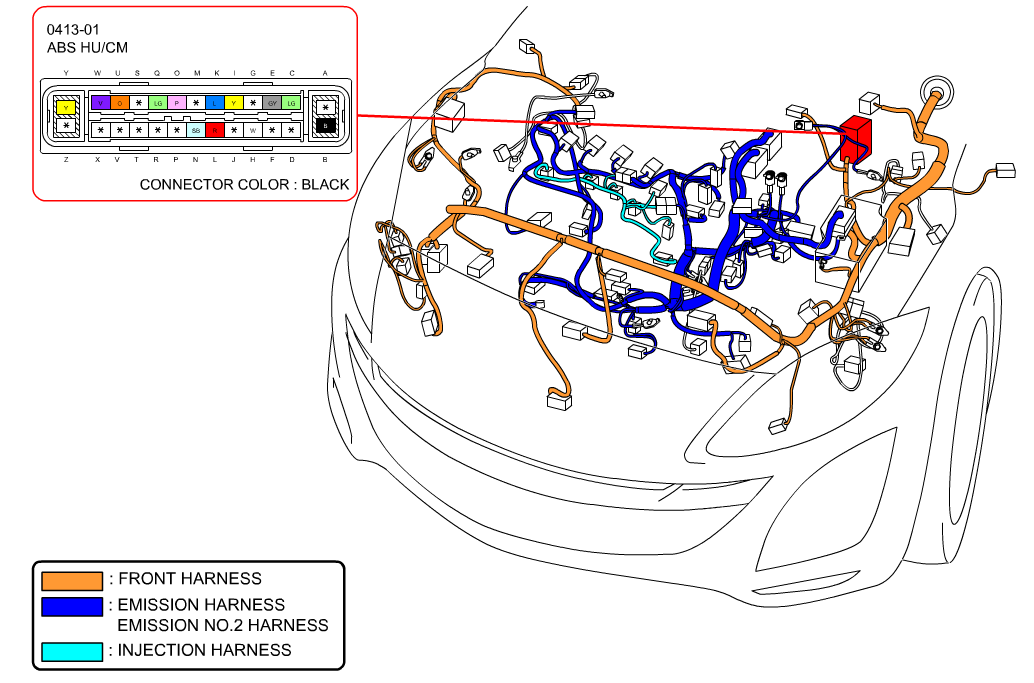

| ABS HU/CM | Left rear corner of engine compartment. See Figure. |

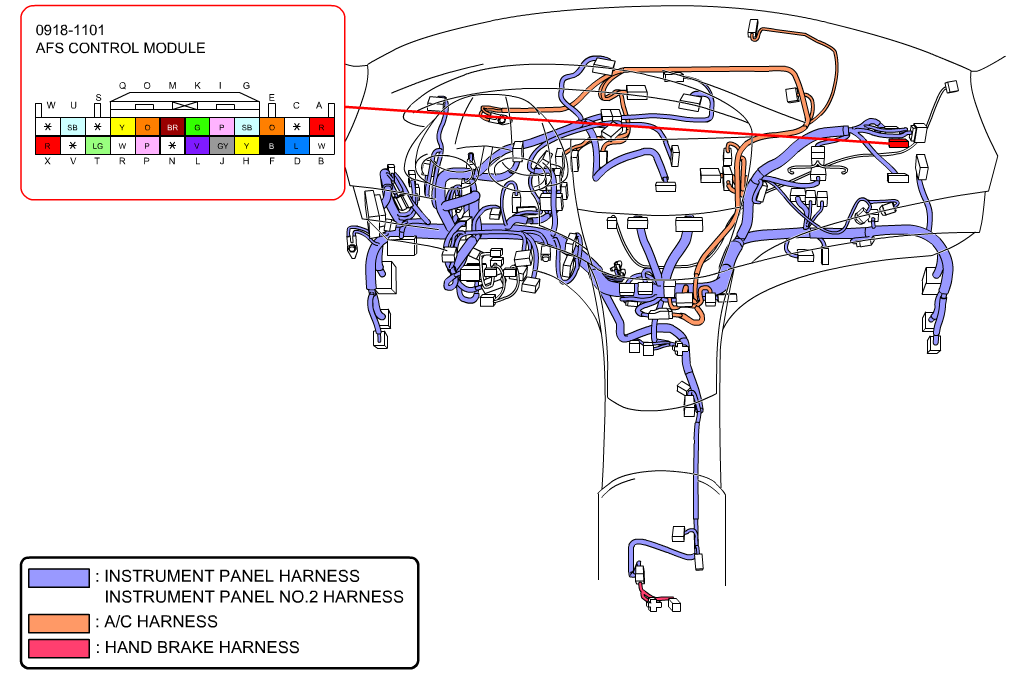

| AFS Control Module | Right end of dash. See Figure. |

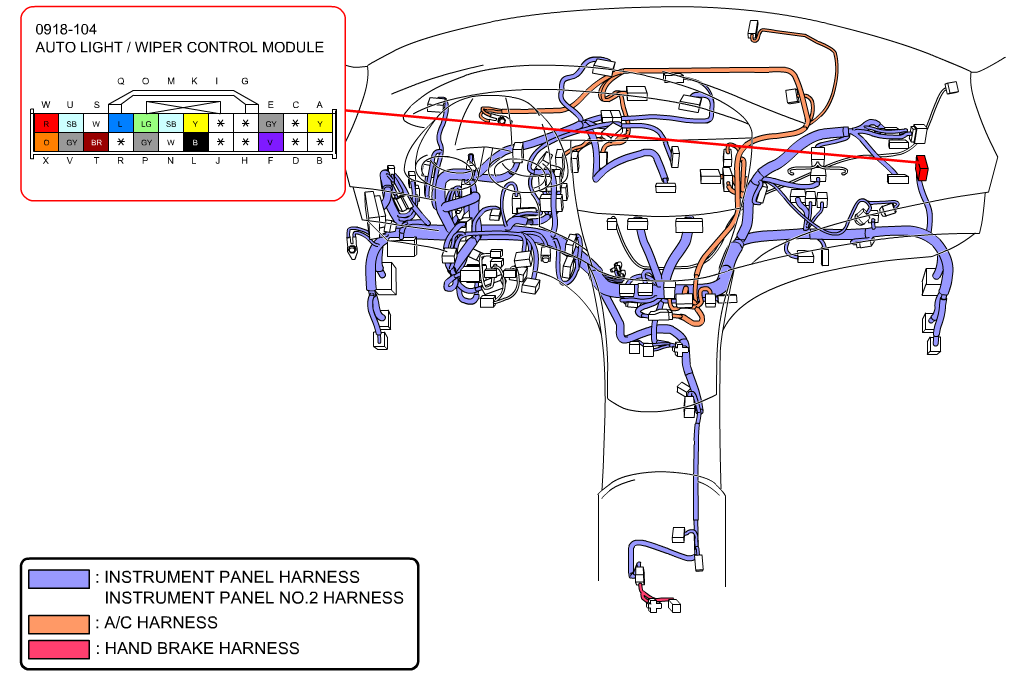

| Auto Light/Wiper Control Module | Right end of dash. See Figure. |

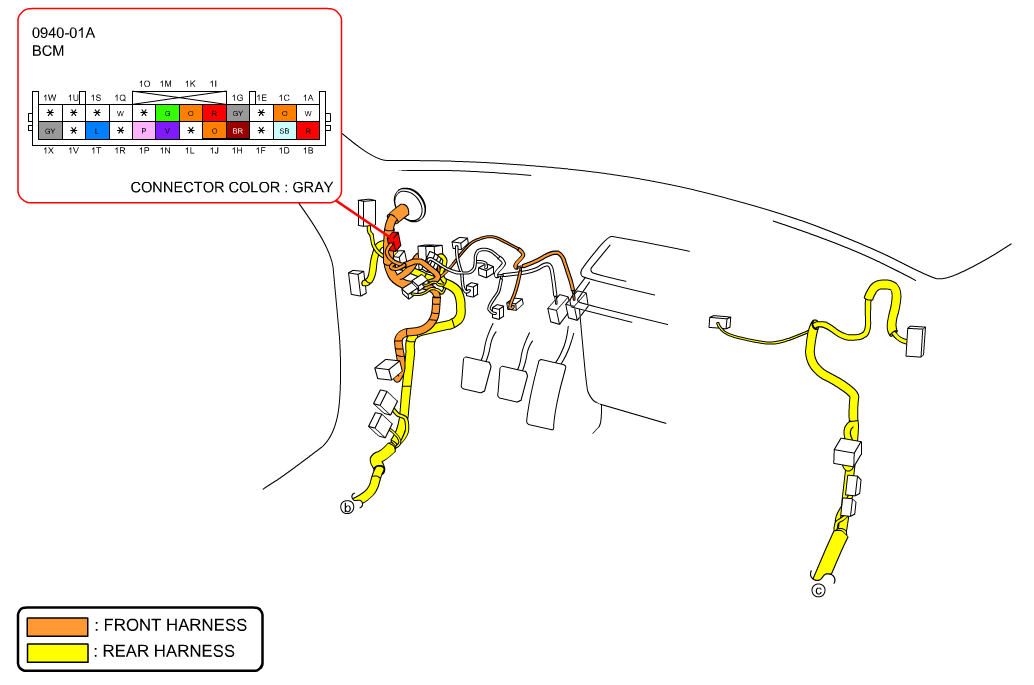

| BCM | Under left side of dash. See Figure. |

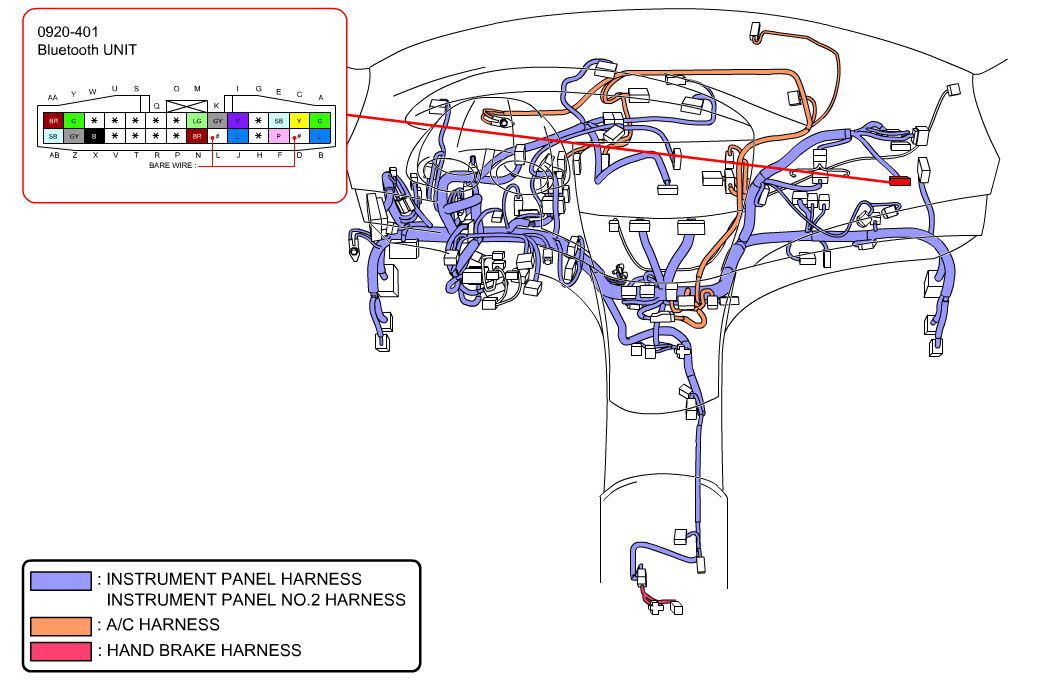

| Bluetooth Unit | Right side of dash. See Figure. |

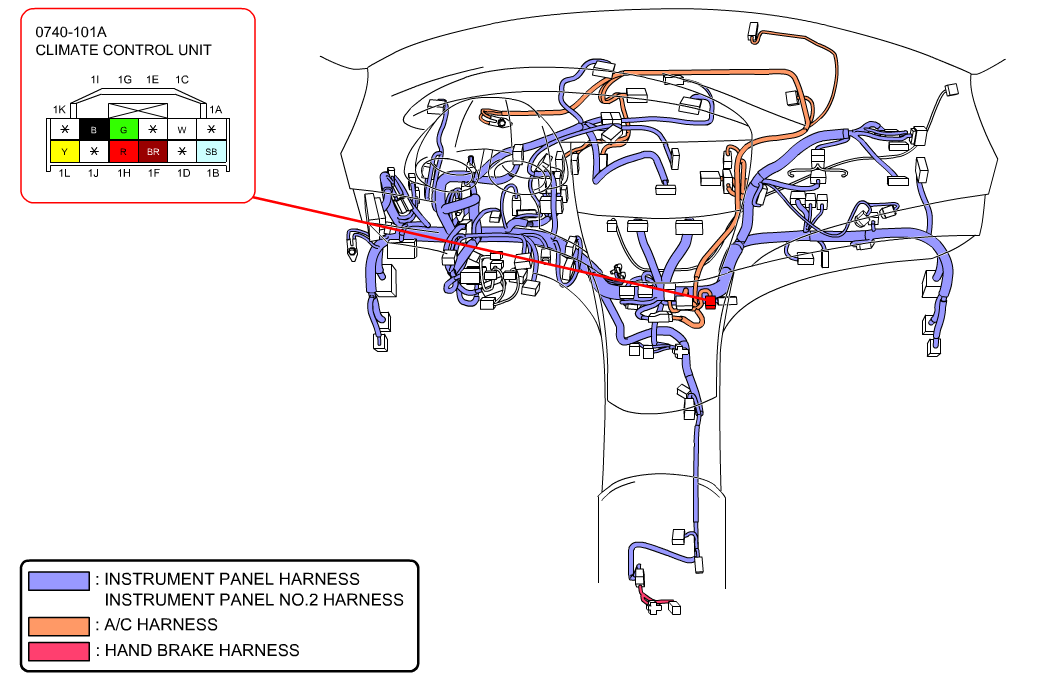

| Climate Control Unit | Lower Center of dash. See Figure. |

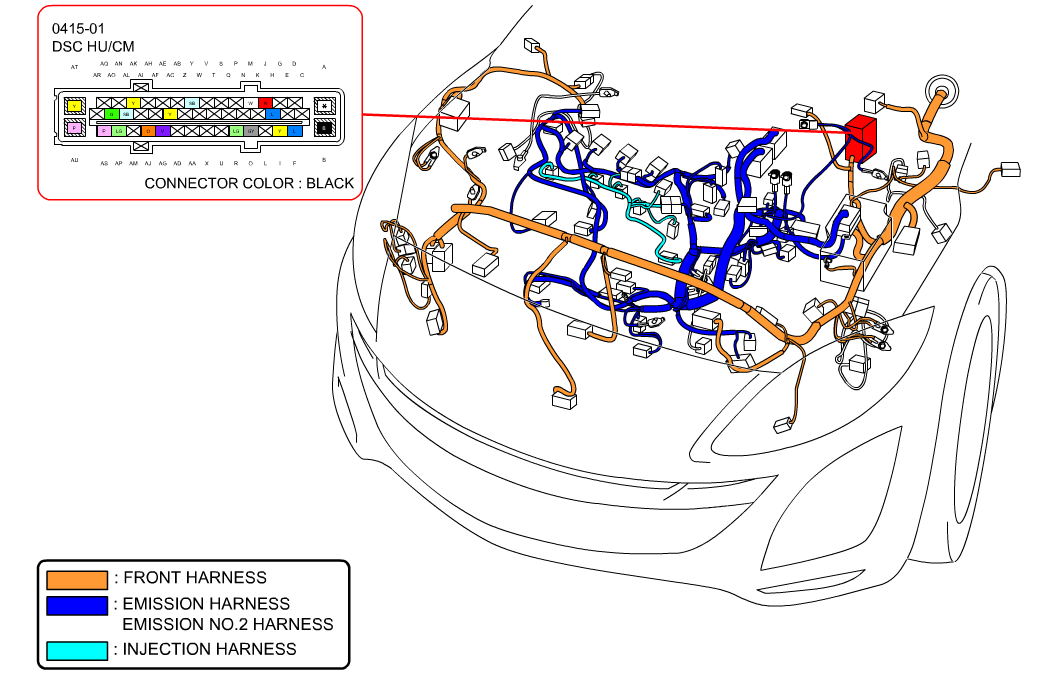

| DSC HU/CM | Left rear of engine compartment. See Figure. |

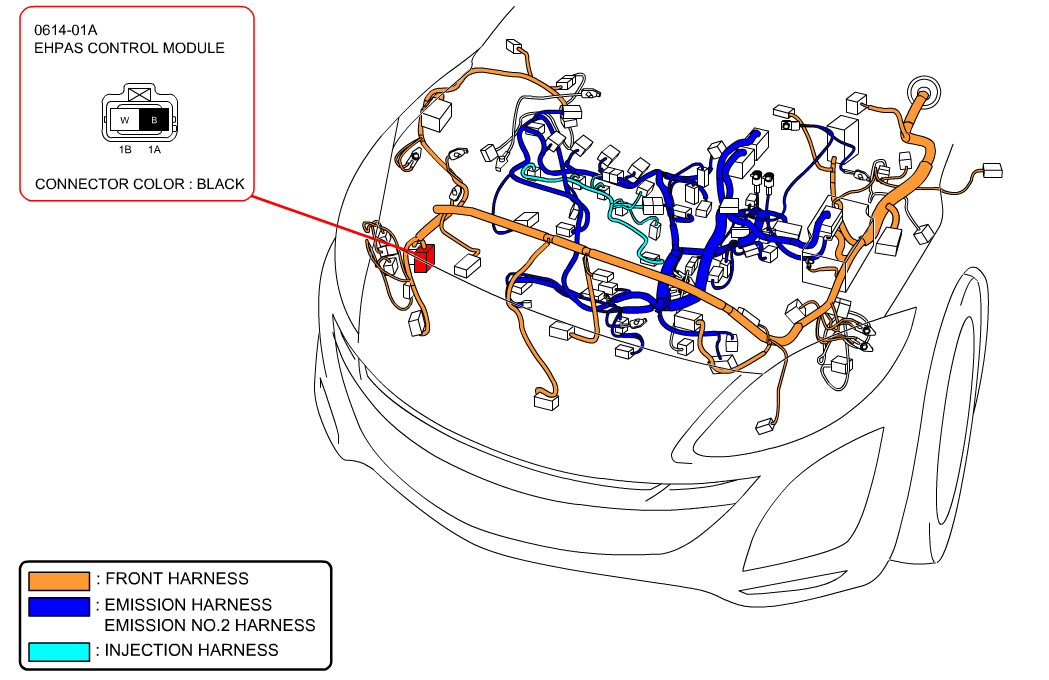

| EHPAS Control Module | Right front of engine compartment. See Figure. |

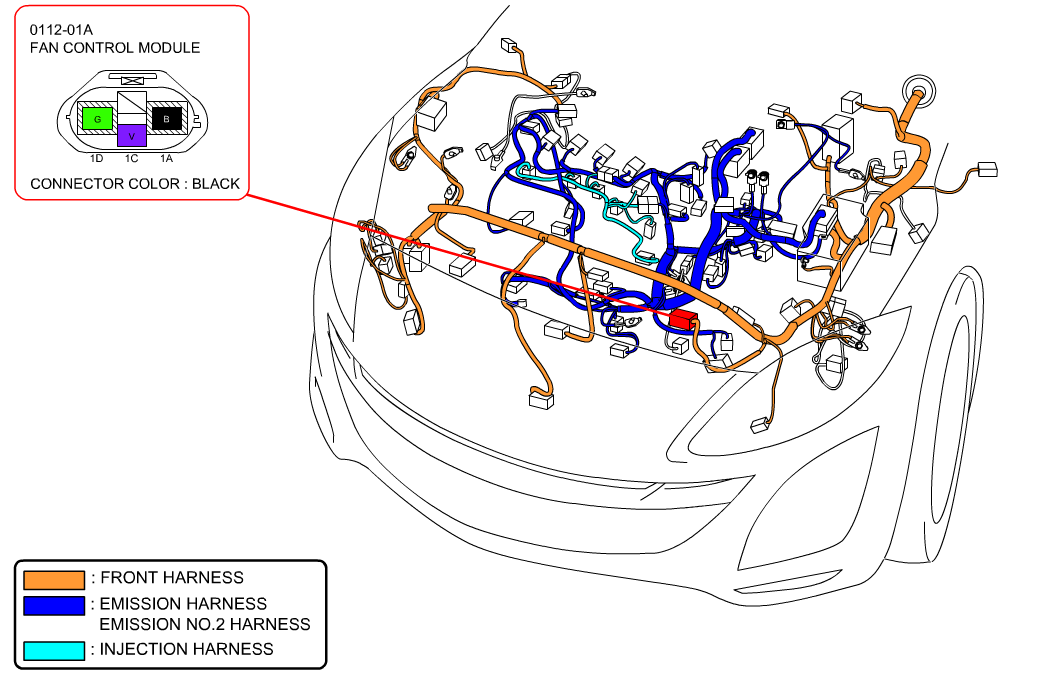

| Fan Control Module | Left front of engine compartment. See Figure. |

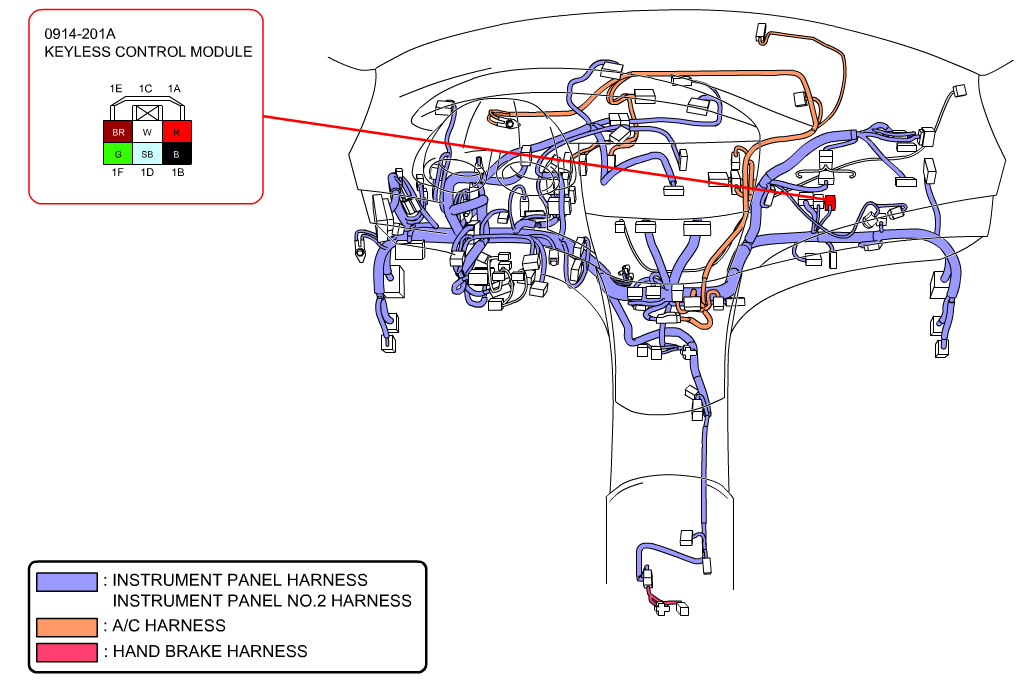

| Keyless Control Module | Left side of dash. See Figure. |

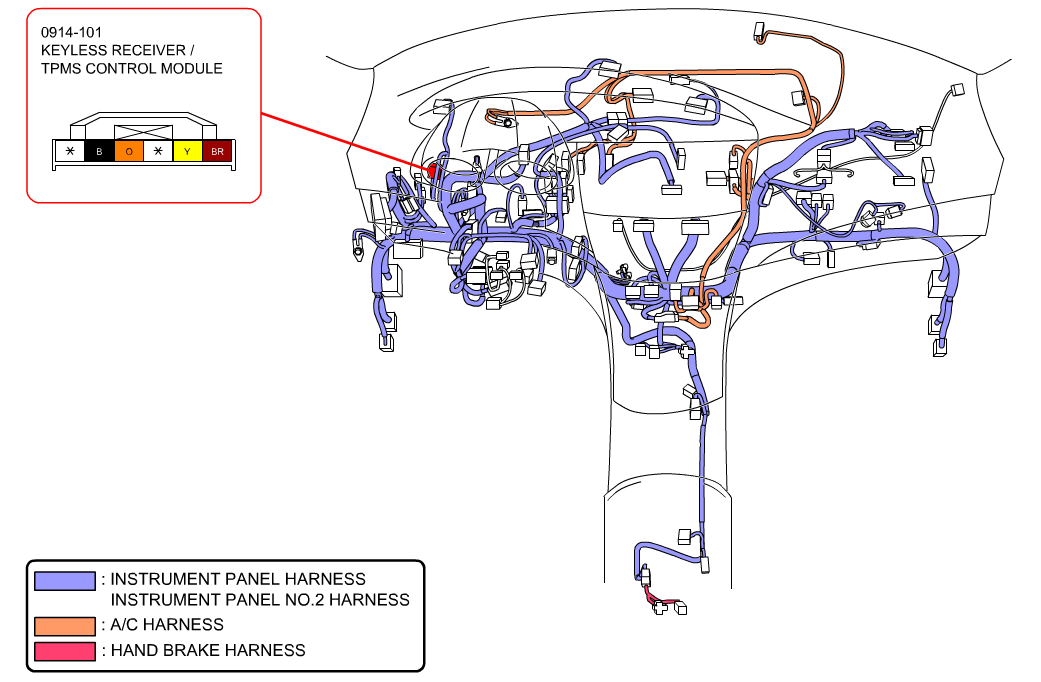

| Keyless Receiver/TPMS Control Module | Left end of dash. See Figure. |

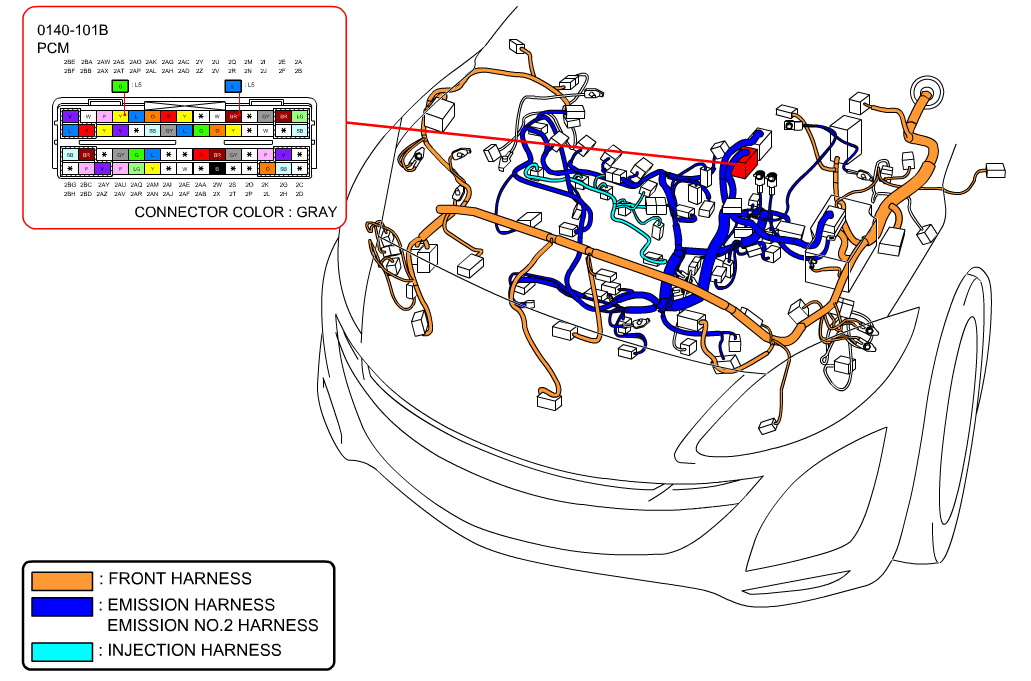

| PCM | Rear of engine compartment. See Figure. |
| Position Memory Control Module | Under driver's seat. |

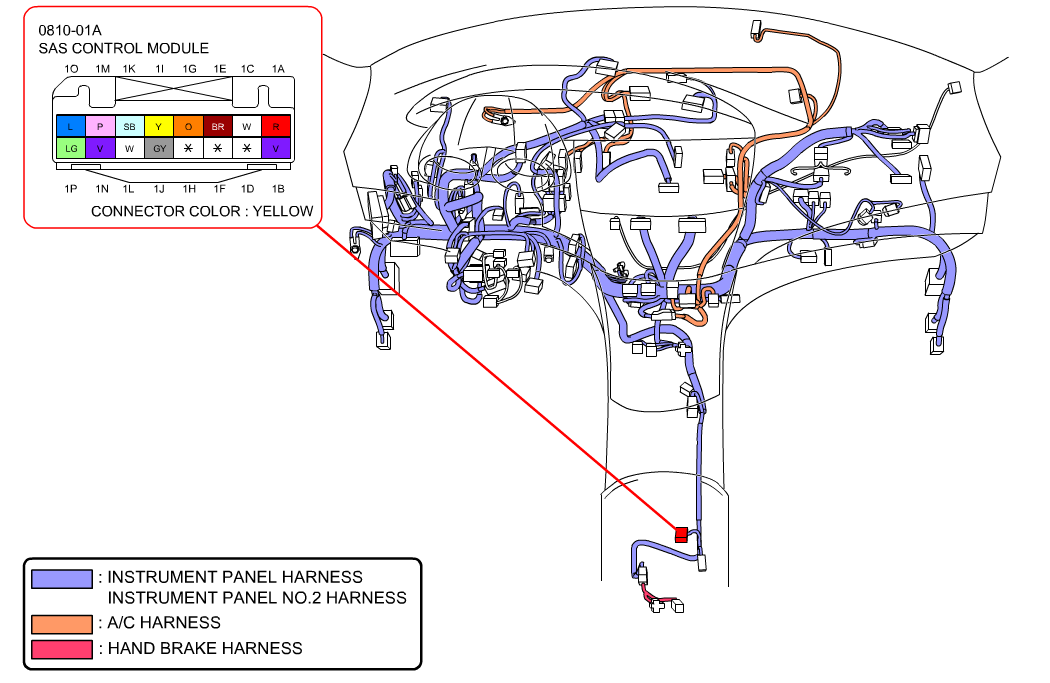

| SAS Control Module | Under center console. See Figure. |
| Seat Weight Sensor Control Module | Under front passenger's seat. |

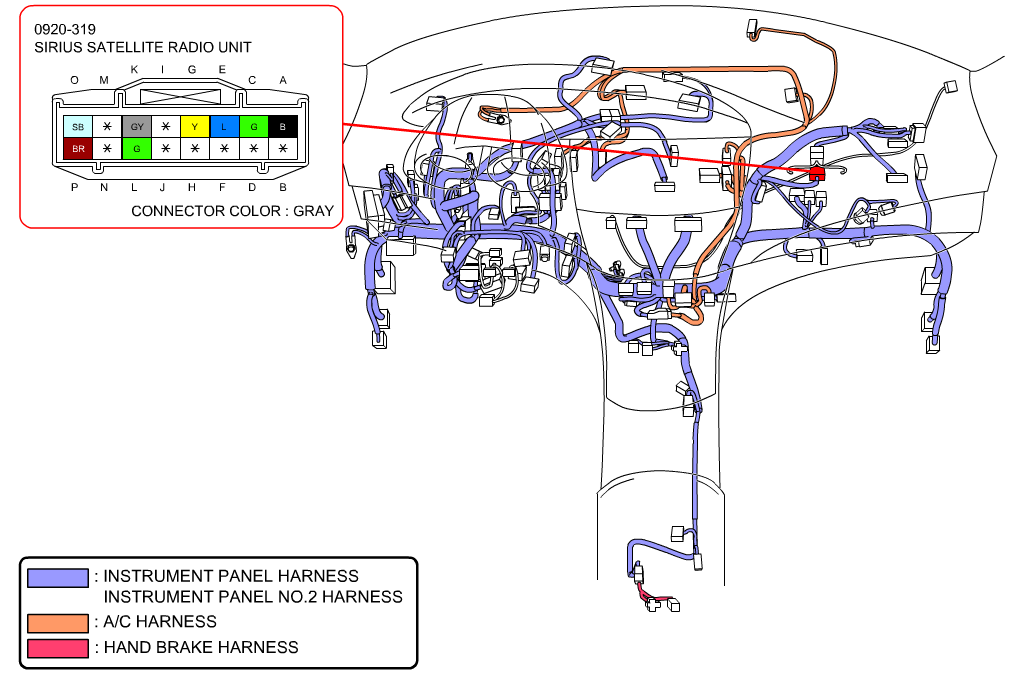

| Sirius Satellite Radio Unit | Right side of dash. See Figure. |

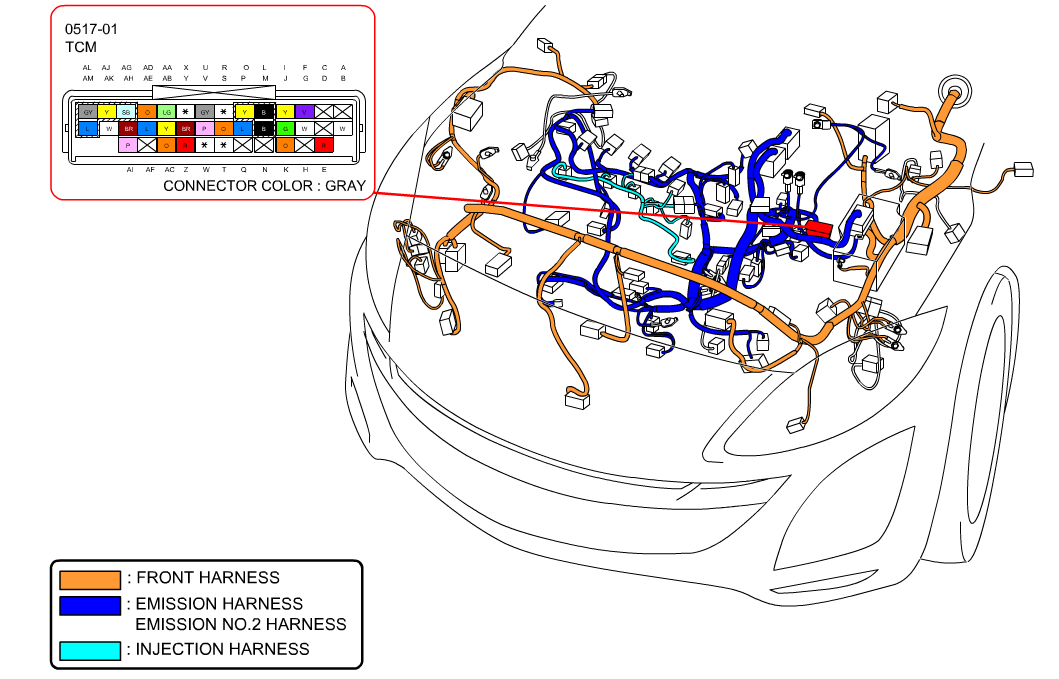

| TCM | Left rear of engine compartment. See Figure. |
