Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

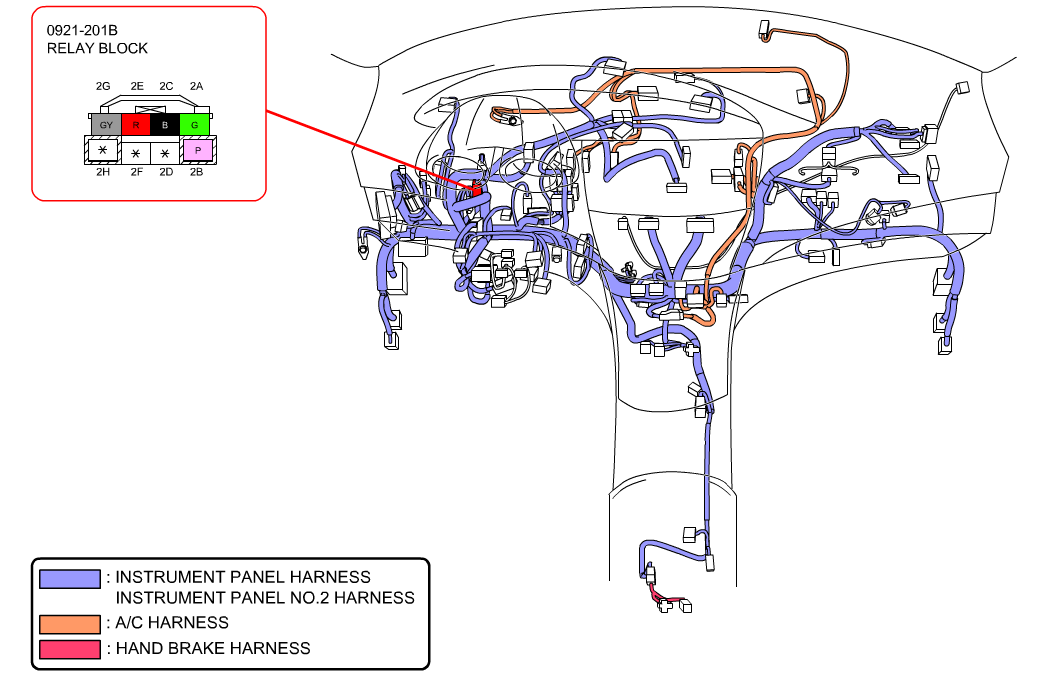

Relay Block Left side of dash. See Figure.

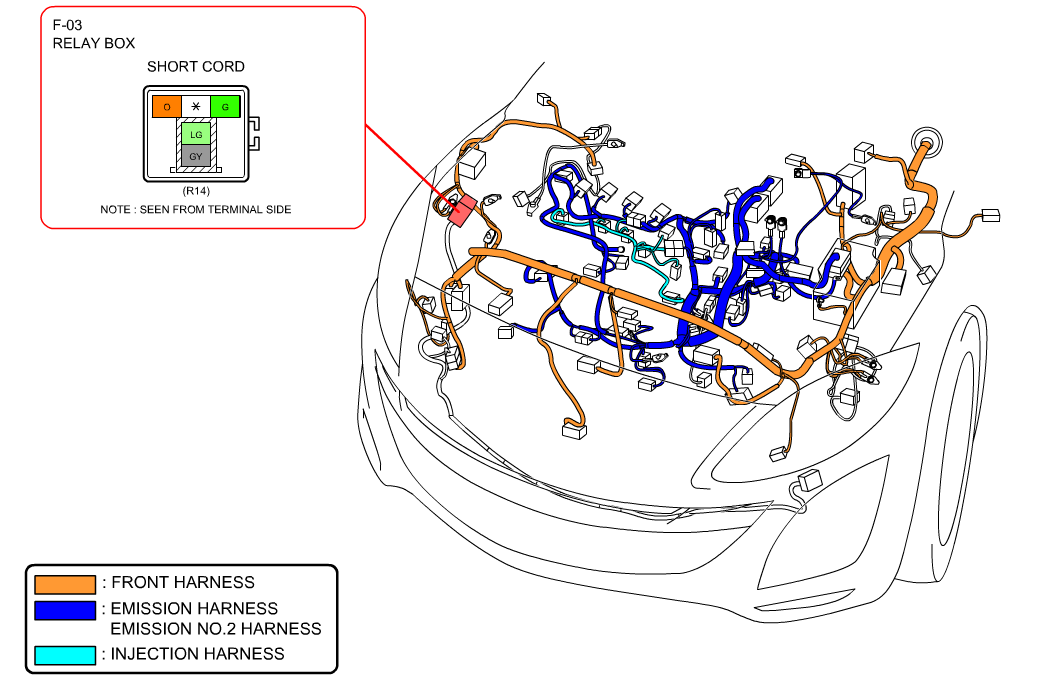

Relay Box Right side of engine compartment. See Figure.

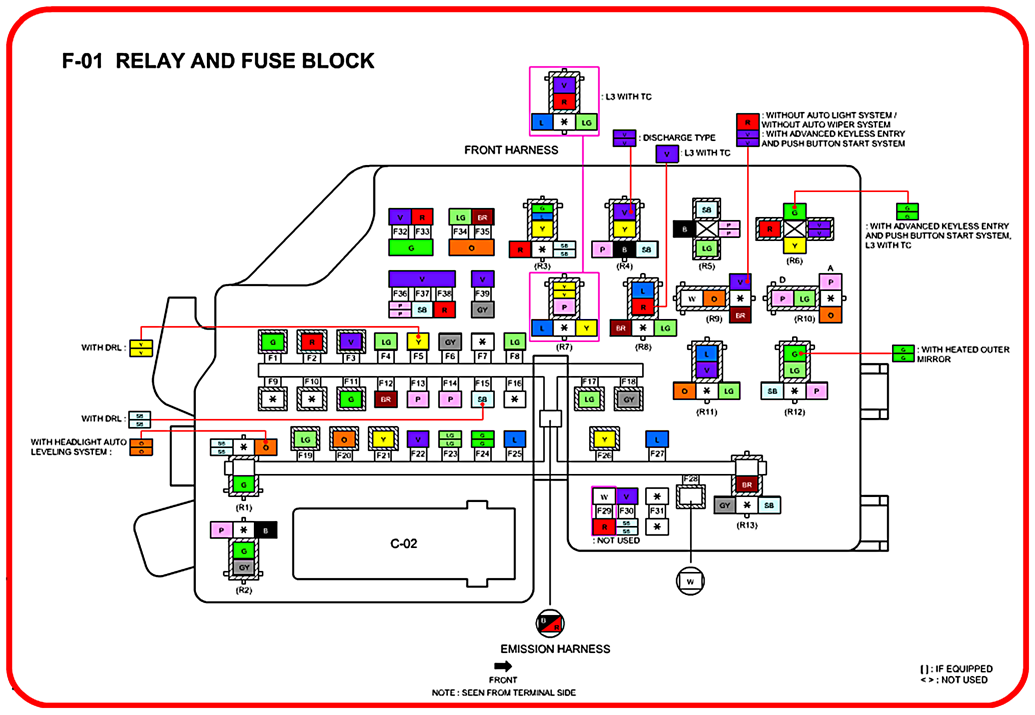

Relay & Fuse Block Left rear of engine compartment. See Figure.
