Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
  2. Disconnect the negative battery cable.
  3. Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated below.
  5. Install in the reverse order of removal.

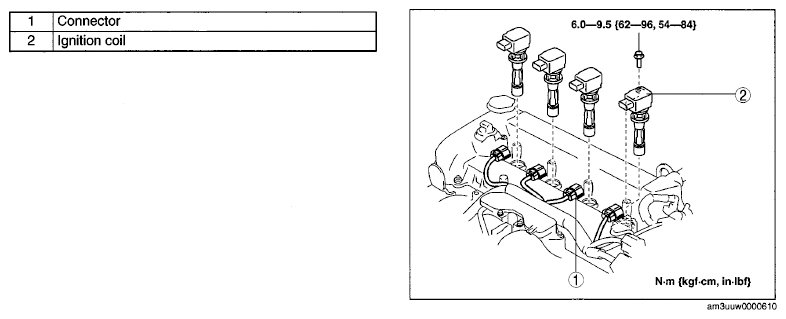

    Fig 1: Ignition Coil With Torque Specifications
    G06734260Courtesy of MAZDA MOTORS CORP.
