Control System Device And Control Relationship Chart

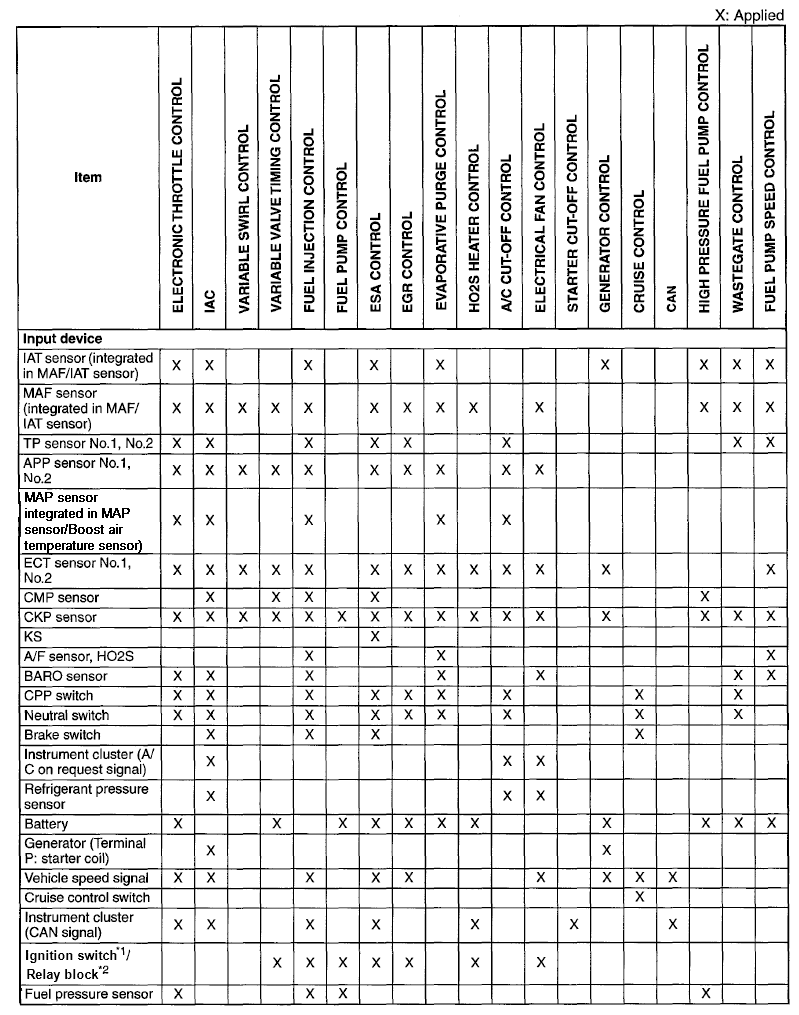

Fig 1: Control System Device And Control Relationship Chart - L3 With TC (1 Of 2)
G06730501Courtesy of MAZDA MOTORS CORP.

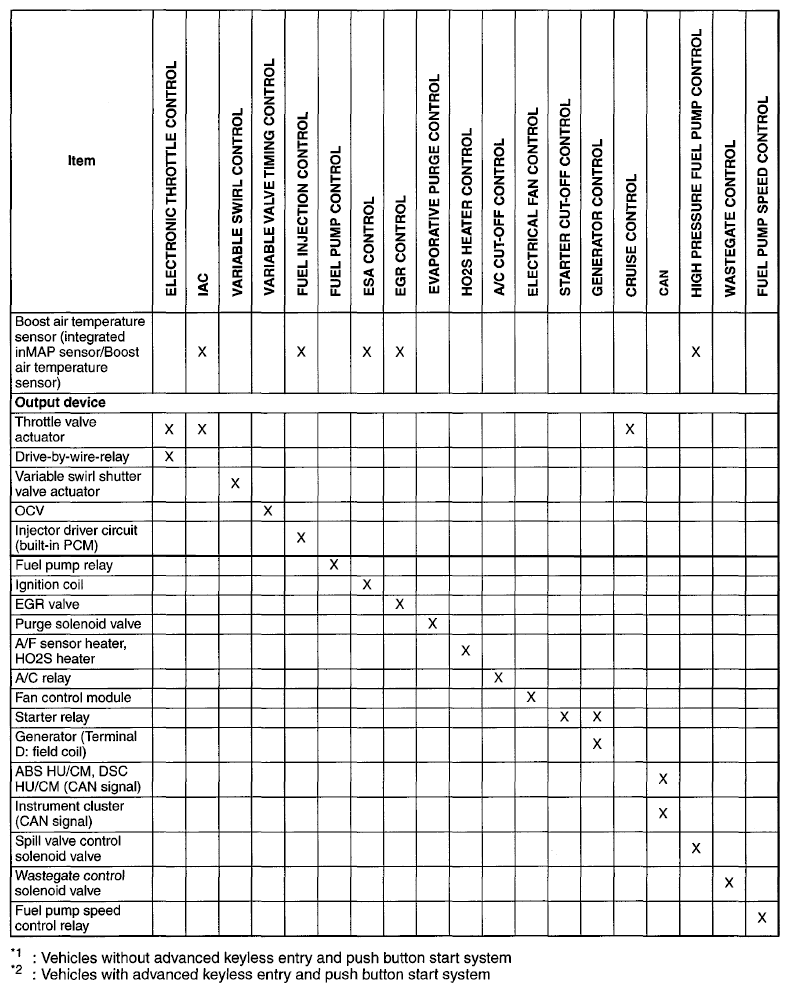

Fig 2: Control System Device And Control Relationship Chart - L3 With TC (2 Of 2)
G06730502Courtesy of MAZDA MOTORS CORP.
