Generator Disassembly/Assembly [L3 With TC]: Notes

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

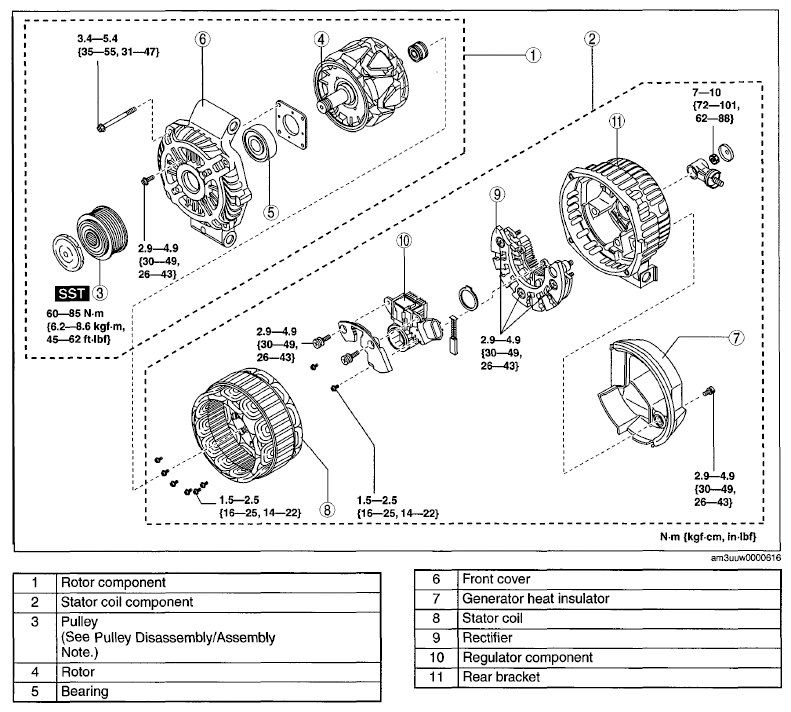

    Fig 1: Generator Replacement Components With Torque Specifications
    G06732998Courtesy of MAZDA MOTORS CORP.
