DSC Off Switch Removal/Installation

  1. Remove the switch panel in the direction of the arrow shown in the illustration.
  2. Disconnect the connector.
    Fig 1: Removing Switch Panel
    G06733278Courtesy of MAZDA MOTORS CORP.
  3. Remove the DSC OFF switch in the direction of the arrow (2) shown in the illustration while pressing the tabs in the direction of the arrow (1).
  4. Remove the DSC OFF switch.
  5. Install in the reverse order of removal.

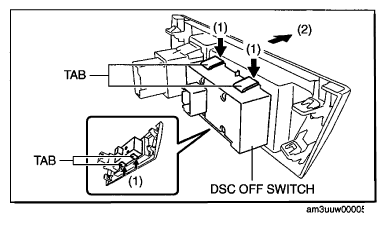

    Fig 2: Removing DSC OFF Switch
    G06733279Courtesy of MAZDA MOTORS CORP.
