Passenger's Side

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the power window subswitch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
  5. Verify that the continuity is as indicated in the table using a tester.
    • If not as indicated in the table, replace the power window subswitch.

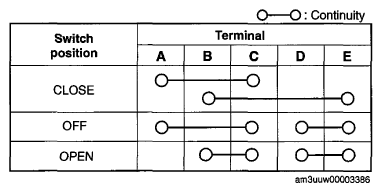

      Fig 1: Power Window Subswitch Terminals Continuity Chart
      G06731791Courtesy of MAZDA MOTORS CORP.
      Fig 2: Inspecting Power Window Subswitch Terminals Continuity
      G06731792Courtesy of MAZDA MOTORS CORP.
