Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation
    • If not as specified, replace the seat cushion frame.
      SLIDE MOTOR OPERATION REFERENCE CHART

      Motor operation Connection
      B+ GND
      Forward D B
      Backward B D

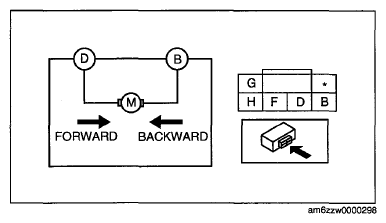

      Fig 1: Inspecting Slide Motor
      G06732613Courtesy of MAZDA MOTORS CORP.
