Power Seat Switch Inspection

  1. Disconnect the power seat switch connector.
  2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
    • If not as specified, replace the power seat switch.

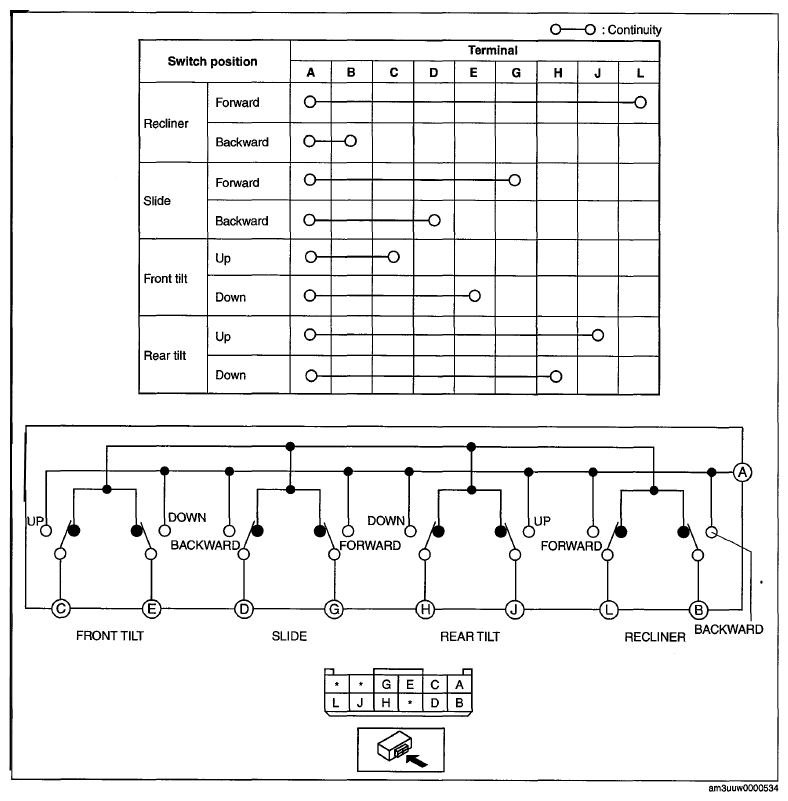

      Fig 1: Power Seat Switch Continuity Chart
      G06732615Courtesy of MAZDA MOTORS CORP.
