Vehicles Without Auto Light/Wiper System

  1. Push the wire in the direction of the arrow shown in the illustration.
  2. Insert a flathead screwdriver between the rearview mirror and base.

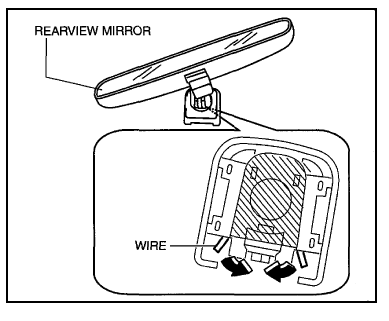

    Fig 1: Identifying Wire Pushing Direction
    G06731865Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped flathead screwdriver to the position shown in the illustration and press the center part of the spring.
    Fig 2: Pressing Center Part Of Spring
    G06200781Courtesy of MAZDA MOTORS CORP.
  4. Pull out the rearview mirror toward the vehicle rear.
    Fig 3: Pulling Out Rearview Mirror Toward Vehicle Rear
    G06200782Courtesy of MAZDA MOTORS CORP.
