Outer Mirror Glass Removal

  1. Press area B of the mirror glass so that area A moves outward.

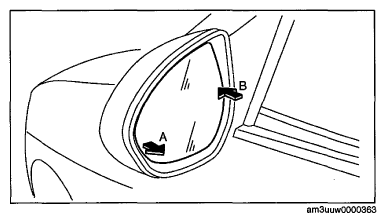

    Fig 1: Pressing Area B Of Mirror Glass So That Area A Moves Outward
    G06731850Courtesy of MAZDA MOTORS CORP.
  2. Detach pin B while lifting up the inside of the mirror glass holder.
  3. Pull the mirror glass holder and remove pins A and C.
  4. Disconnect the mirror heater connectors. (vehicles with heated outer mirrors)
  5. Remove the mirror glass holder and the outer mirror glass as a single unit.
    Fig 2: Removing Mirror Glass Holder And Outer Mirror Glass
    G06731851Courtesy of MAZDA MOTORS CORP.
