Trunk Lid Opener Cable Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    5. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    6. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    7. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    8. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    9. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    10. Trunk lid opener lever (See TRUNK LID OPENER LEVER REMOVAL/INSTALLATION .)
  3. Remove the blots and nut.

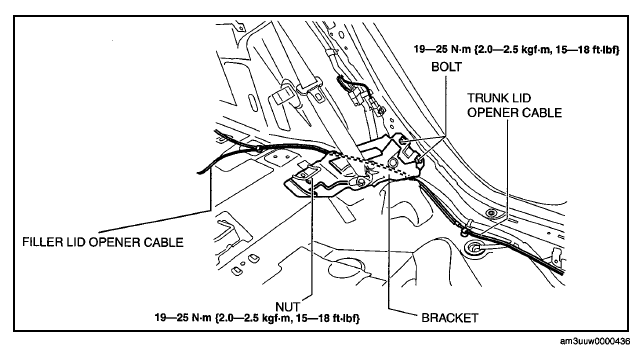

    Fig 1: Identifying Trunk Lid Opener Cable Bolt And Nut
    G06731976Courtesy of MAZDA MOTORS CORP.
  4. Remove the bracket.
  5. Disconnect the trunk lid striker from the trunk lid opener cable.

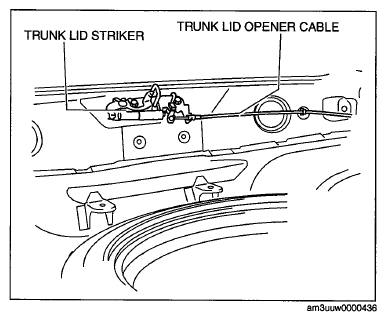

    Fig 2: Identifying Trunk Lid Striker And Trunk Lid Opener Cable
    G06731977Courtesy of MAZDA MOTORS CORP.
  6. Remove the trunk lid opener cable from clips A.

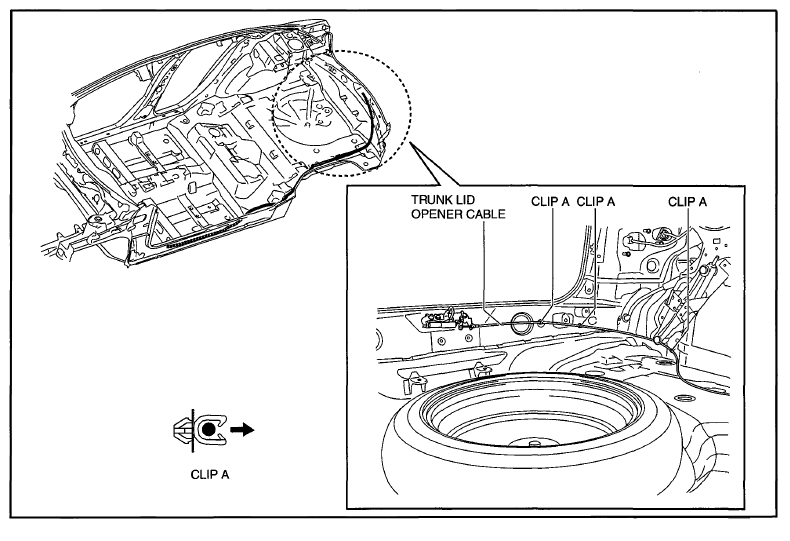

    Fig 3: Identifying Trunk Lid Opener Cable And Clips A
    G06731978Courtesy of MAZDA MOTORS CORP.
  7. Remove the trunk lid opener cable from clips B and C.

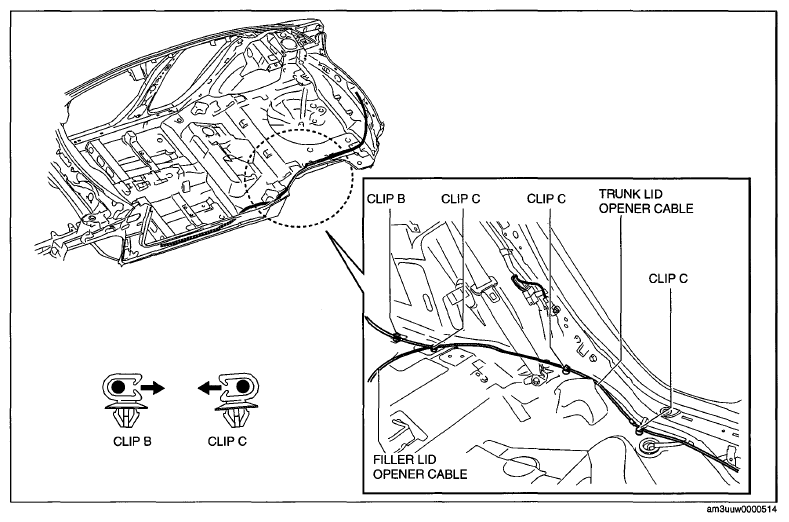

    Fig 4: Identifying Trunk Lid Opener Cable, Clips B And C
    G06731979Courtesy of MAZDA MOTORS CORP.
  8. Remove the trunk lid opener cable from clips D.

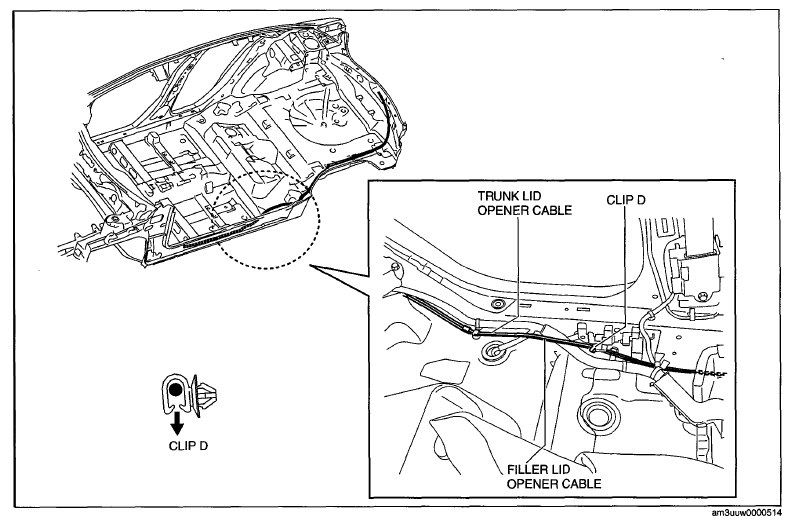

    Fig 5: Identifying Trunk Lid Opener Cable And Clips D
    G06731980Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
