Rear Outer Handle Removal/Installation

Fully close the rear door glass.
Disconnect the negative battery cable.
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the service hole cover.

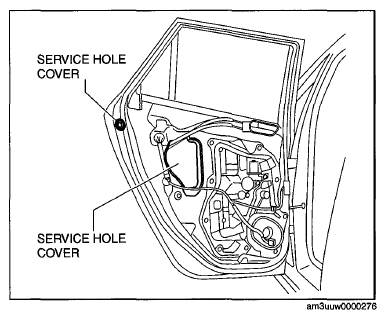

Fig 1: Identifying Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Remove the screw from the service hole.

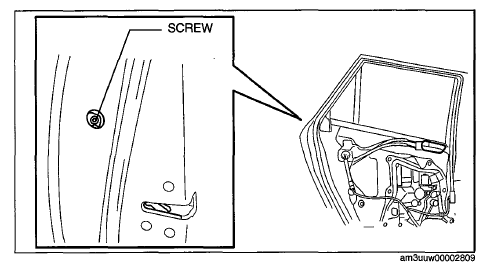

Fig 2: Identifying Rear Outer Handle Screw
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The screw cannot be removed because of the stopper.
Press the tab on the rear outer handle bracket in the direction of the arrow in the figure.

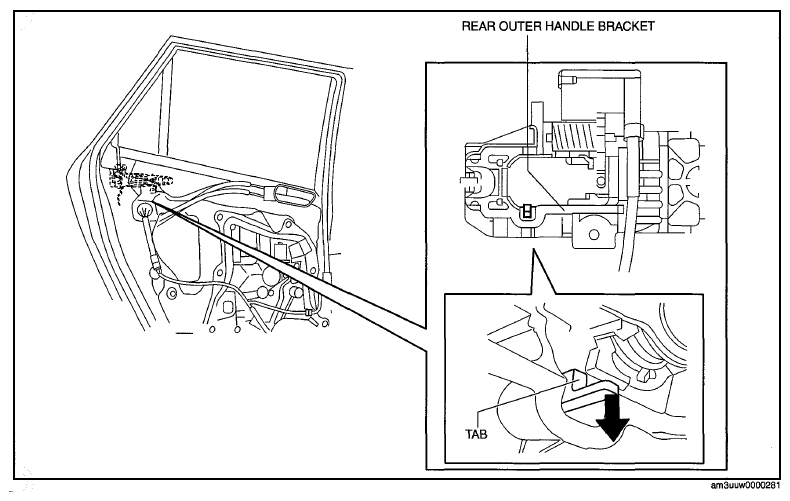

Fig 3: Pressing Tab On Rear Outer Handle Bracket
Courtesy of MAZDA MOTORS CORP.
Maintaining the condition in procedure 6, remove the outer handle garnish.

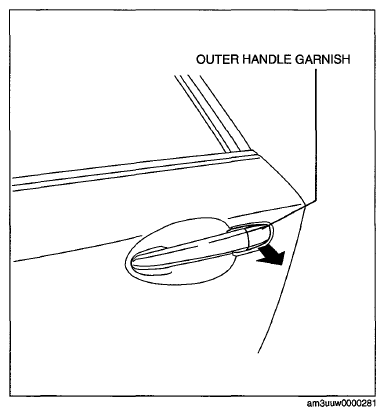

Fig 4: Removing Outer Handle Garnish
Courtesy of MAZDA MOTORS CORP.
Remove the rear outer handle.

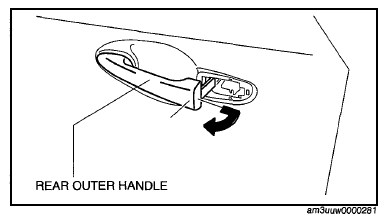

Fig 5: Removing Rear Outer Handle
Courtesy of MAZDA MOTORS CORP.
Loosen the screw.

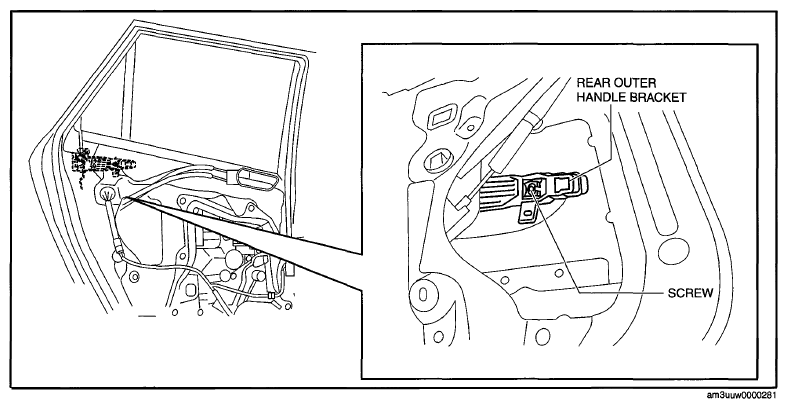

Fig 6: Identifying Rear Outer Handle Bracket And Screw
Courtesy of MAZDA MOTORS CORP.
Press down the rod holder in the direction of arrow (1) in the figure and remove the rear outer handle bracket in the direction of arrow (2).

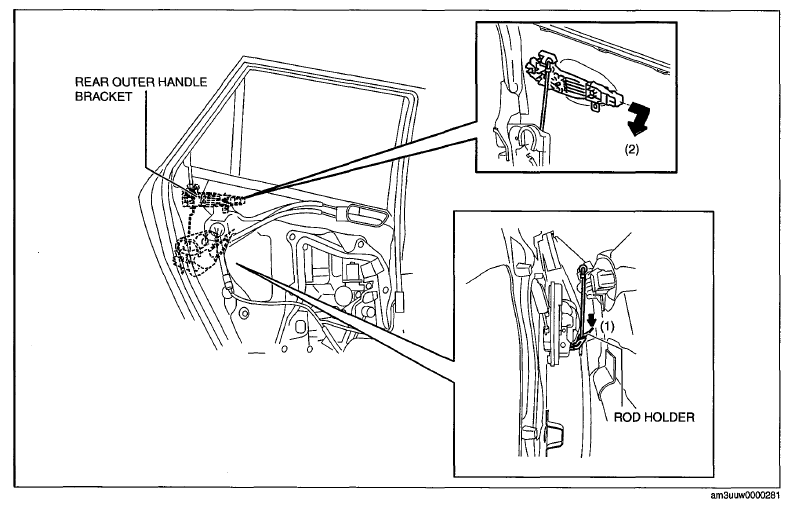

Fig 7: Identifying Rear Outer Handle Bracket And Rod Holder
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
