Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

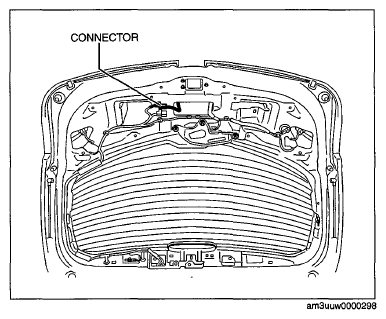

    Fig 1: Identifying Liftgate Latch And Lock Actuator Connector
    G06731983Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the liftgate latch and lock actuator.
  6. Install in the reverse order of removal.

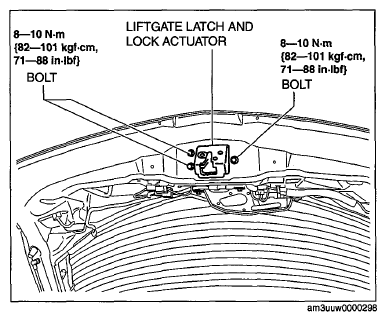

    Fig 2: Identifying Liftgate Latch And Lock Actuator
    G06731984Courtesy of MAZDA MOTORS CORP.
