Vehicle Interior, Front

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the fastener.
  4. Disconnect the connector.
  5. Remove the keyless antenna.
  6. Install in the reverse order of removal.

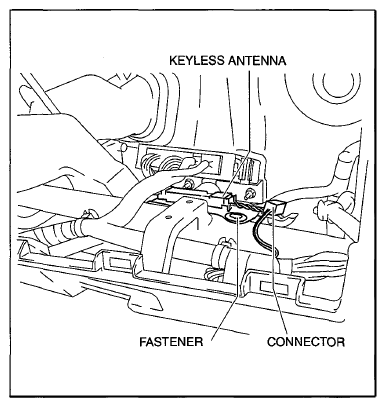

    Fig 1: Identifying Keyless Antenna, Fastener And Connector
    G06732009Courtesy of MAZDA MOTORS CORP.
