No. 3 Programming Procedure After Steering Lock Unit Replacement: Procedure

Fig 1: Identifying Valid Key

Courtesy of MAZDA MOTORS CORP.

STEERING LOCK UNIT CHART

STEP	Procedure	Action after procedure
1	REPLACE STEERING LOCK UNIT Replace the steering lock unit. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)	Go to the next step.
2	CONNECT THE M-MDS Connect the M-MDS to the DLC-2. (See M-MDS CONNECTING PROCEDURE .) Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, "There is no programmed ignition key and programmed advanced key" from the M-MDS screen. CAUTION: If the ignition is switched ON by selecting "FORCED IGNITION ON", the engine cannot be started. Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.	Go to the next step.
3	PROGRAM STEERING LOCK UNIT Select "Steering Lock Unit Programming" from the M-MDS screen menu. Bring the advanced keys into the vehicle. Complete the security access procedure and the steering lock unit programming according to the directions on the M-MDS screen. (See STEERING LOCK UNIT ID CODE REGISTRATION .) After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)". Switch the ignition off (LOCK). Disconnect the M-MDS from the DLC-2. Remove the programmed advanced keys from the vehicle.	Go to the next step.

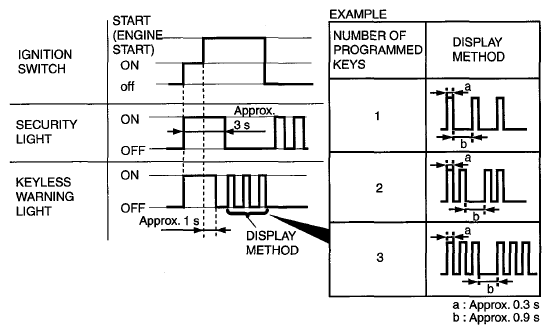

4	SET UP IMMOBILIZER SYSTEM WITH KEY 1 NOTE: By starting the engine, the immobilizer system is set up and key programming is finished. Start the engine using key 1. Verify that the security light and keyless warning light operate as shown in the following figure. Switch the ignition off (LOCK) and remove key 1. Courtesy of MAZDA MOTORS CORP.	Go to the next step.
5	VERIFY THAT KEY IS PROGRAMMED Start the engine using key 2. Verify that the security light and keyless warning light operate as shown in the following figure. Switch the ignition off (LOCK) and remove key 2. Are there other keys to be programmed? Courtesy of MAZDA MOTORS CORP.	Yes	Repeat Step 5 using each programmed key.
5		No	Go to the next step.
6	VERIFY THAT ADVANCED KEY IS PROGRAMMED Bring the advanced key into the vehicle. Close all doors. Remove the key from the key slot and place it on the front passenger's seat. Start the engine using the advanced key. Verify that the security light and keyless warning light operate as shown in the following figure. After verifying that the keyless warning light turns off, switch the ignition off (LOCK). Courtesy of MAZDA MOTORS CORP.	Procedure is completed.
