Front Door Key Cylinder Removal/Installation

  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.
    Fig 1: Identifying Distance From Top Of Front Door Glass
    G06731732Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  4. Remove the service hole cover.

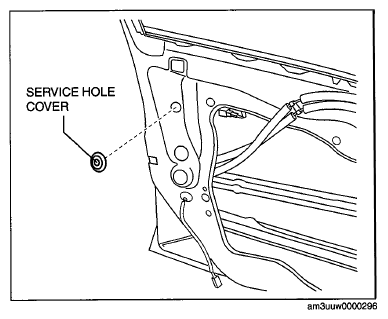

    Fig 2: Identifying Service Hole Cover
    G06731921Courtesy of MAZDA MOTORS CORP.
  5. Remove the tab, then remove the door lock-link bracket.

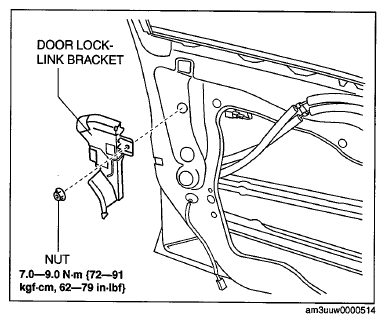

    Fig 3: Door Lock-Link Bracket And Tab With Torque Specifications
    G06731922Courtesy of MAZDA MOTORS CORP.
  6. Remove the service hole cover.

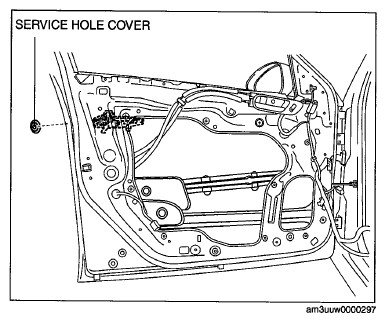

    Fig 4: Identifying Service Hole Cover
    G06731923Courtesy of MAZDA MOTORS CORP.
  7. Remove the screw from the service hole.
    NOTE:
    • The screw cannot be removed because of the stopper.

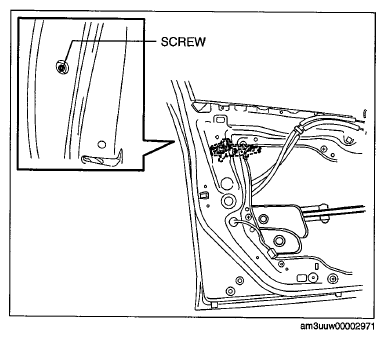

      Fig 5: Identifying Service Hole And Screw
      G06731924Courtesy of MAZDA MOTORS CORP.
  8. Lift the clip in the direction of the arrow (1) in the figure, and pull out the key rod in the direction of the arrow (2).

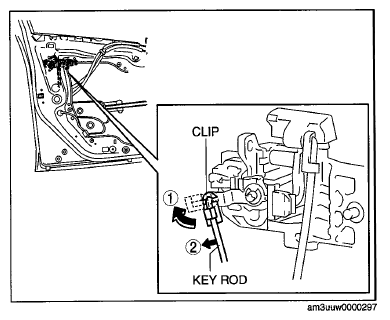

    Fig 6: Pulling Key Rod
    G06731925Courtesy of MAZDA MOTORS CORP.
  9. Press the tab on the front outer handle bracket in the direction of the arrow in the figure.

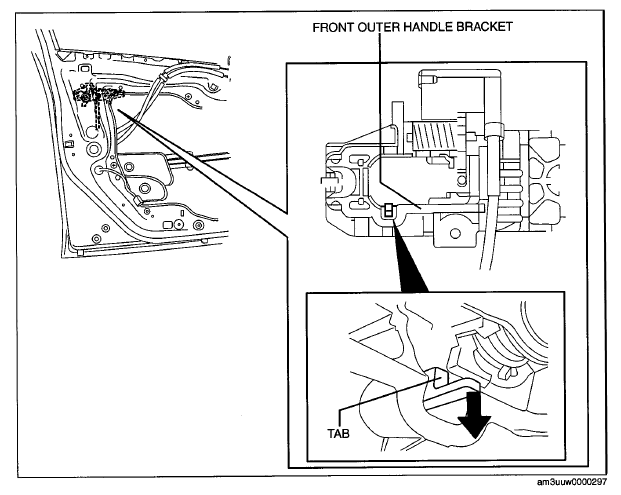

    Fig 7: Pressing Tab On Front Outer Handle Bracket
    G06731926Courtesy of MAZDA MOTORS CORP.
  10. Maintaining the condition in Step  9, remove the front key cylinder.

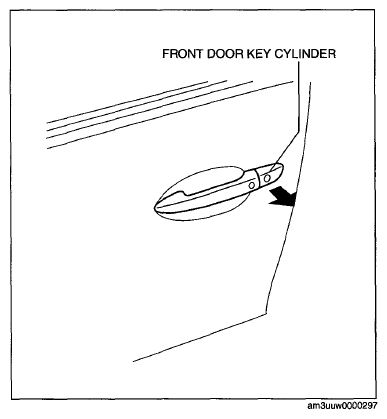

    Fig 8: Identifying Front Key Cylinder
    G06731927Courtesy of MAZDA MOTORS CORP.
  11. Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the figure, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.
  12. Install in the reverse order of removal.

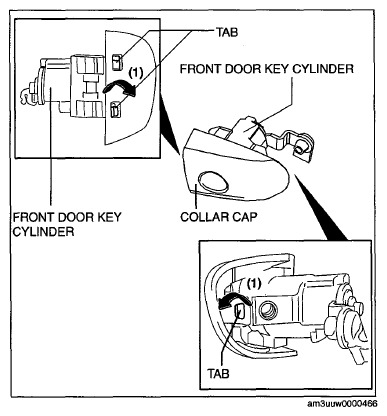

    Fig 9: Identifying Front Key Cylinder And Collar Cap
    G06731928Courtesy of MAZDA MOTORS CORP.
