Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3 With TC] (1 Of 5)
>>
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

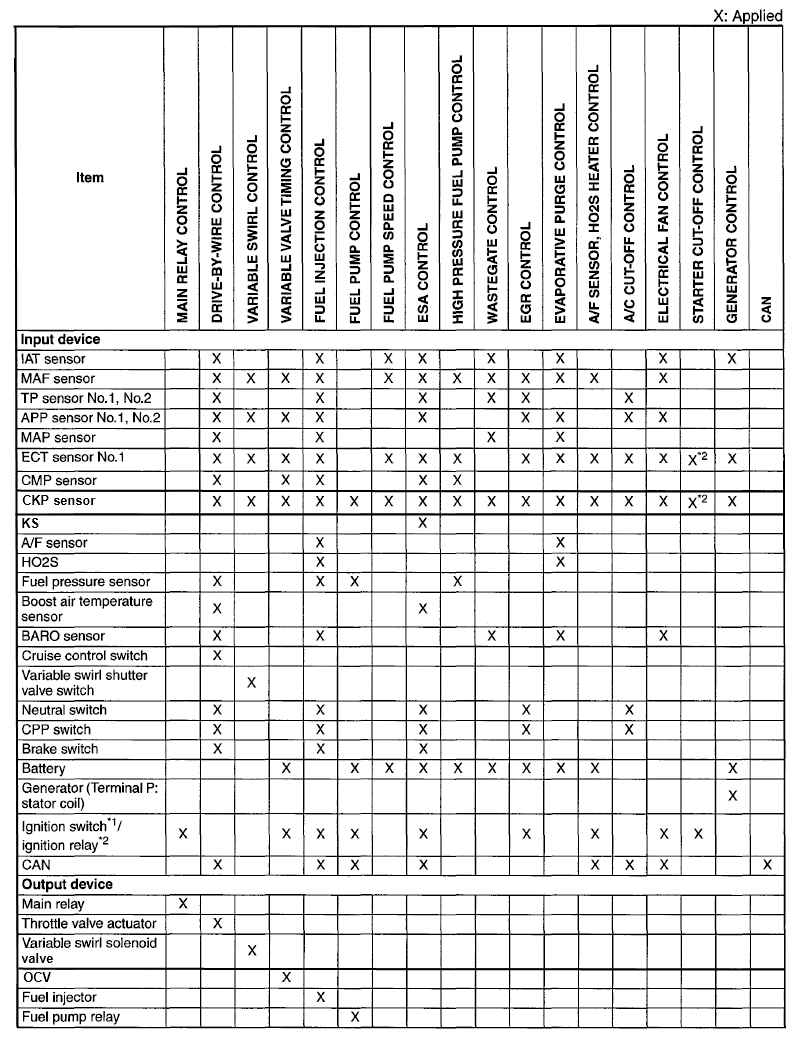

Fig 1: Monitoring System And Control System Device Relationship Chart (L3 With TC) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

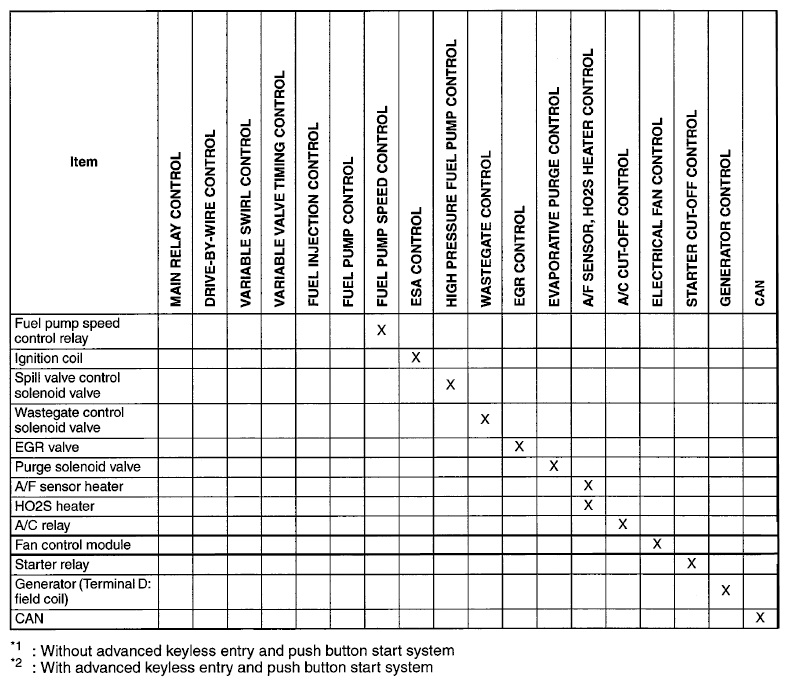

Fig 2: Monitoring System And Control System Device Relationship Chart (L3 With TC) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
