Keyless Control Module And Relay Block Connector End View

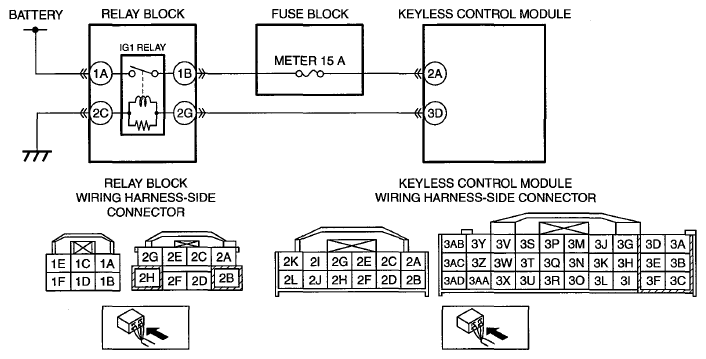

Fig 1: Keyless Control Module And Relay Block Connector End View

G06731457

Courtesy of MAZDA MOTORS CORP.
