Steering Linkage - Exploded View

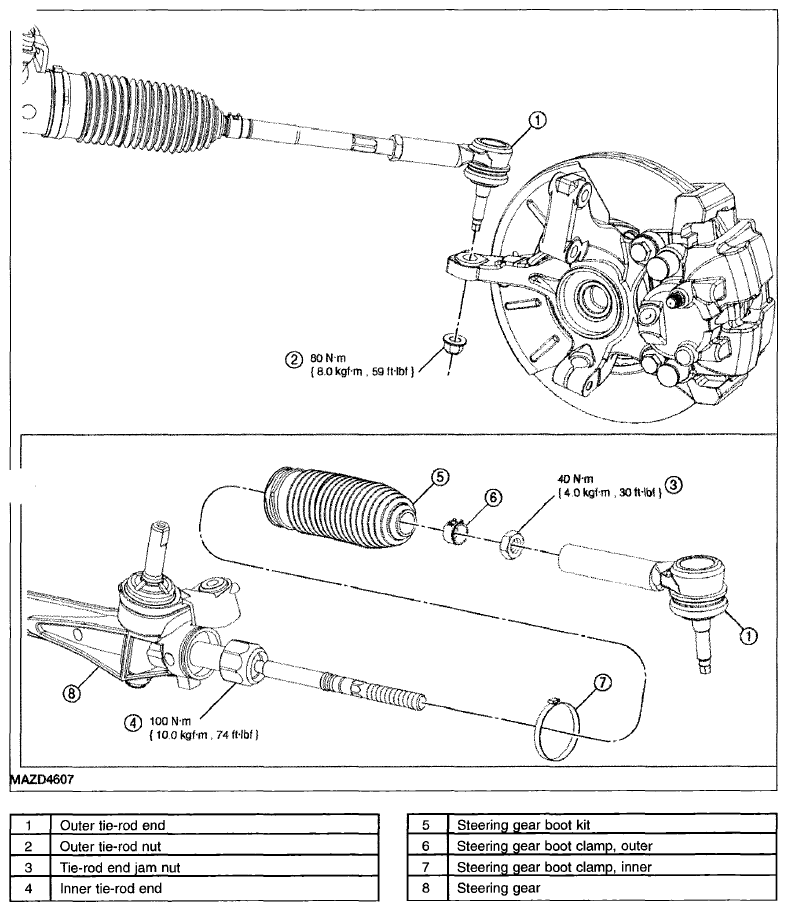

Fig 1: Identifying Steering Linkage Components

G06158891

Courtesy of MAZDA MOTORS CORP.

For additional information, see the procedures in this service information.
