Connector End Views - Speed Control

Fig 1: Identifying 0918 - 701 Brake Pedal Position (BPP) Switch Connectors

Courtesy of MAZDA MOTORS CORP.

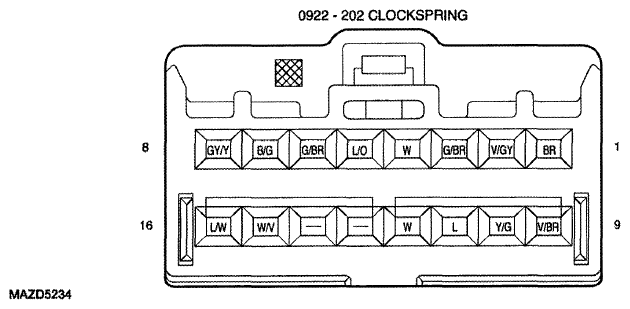

Fig 2: Identifying 0922 - 202 Clockspring Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying 0120 - 103 Clutch Pedal Speed Control Deactivator Switch Connectors

Courtesy of MAZDA MOTORS CORP.

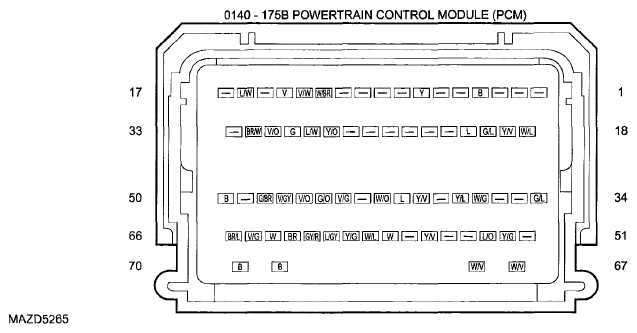

Fig 4: Identifying 0140 - 175B Powertrain Control Module (PCM) Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying 0140 - 175T Powertrain Control Module (PCM) Connectors

Courtesy of MAZDA MOTORS CORP.
