Engine Ignition - RH

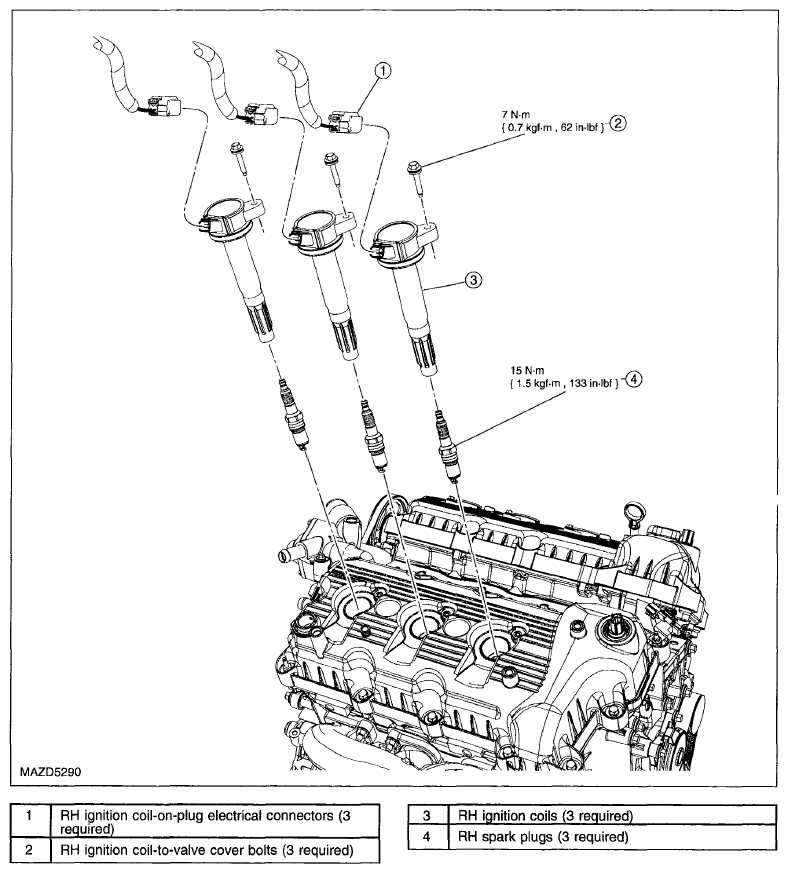

Fig 1: Identifying Engine Ignition Components - RH
G06157186Courtesy of MAZDA MOTORS CORP.
