Fuel Lines - Exploded View
Fuel Lines - Exploded View

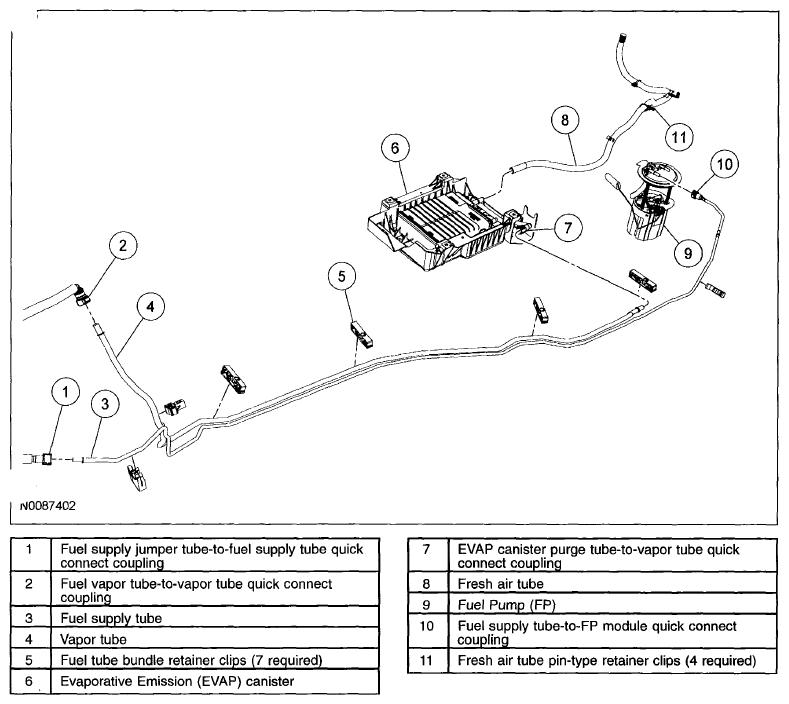

Fig 1: View Of Fuel Lines
Courtesy of MAZDA MOTORS CORP.
For additional information, see the procedures in this service information.
Courtesy of MAZDA MOTORS CORP.
