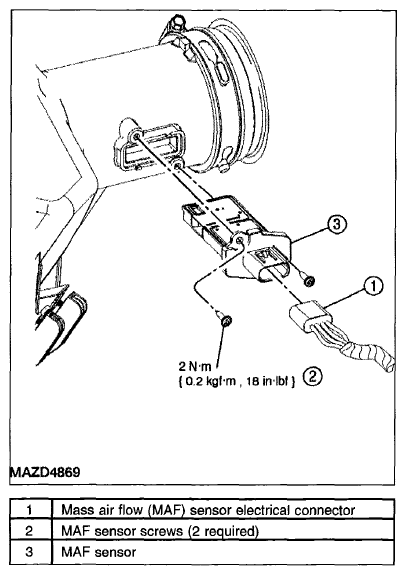

Mass Air Flow (MAF) Sensor Removal/Installation - 3.0L
CAUTION:
- The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.
- Disconnect the mass air flow (MAF) sensor electrical connector.
- Remove the 2 screws and the MAF sensor.
- To install, tighten to 2 N.m {0.2 kgf.m, 18 in.lbf}.
- To install, reverse the removal procedure.
