Knock Sensor (KS) Removal/Installation - 2.5L
- With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
- Remove the intake manifold. See INTAKE MANIFOLD REMOVAL/INSTALLATION - 2.5L .

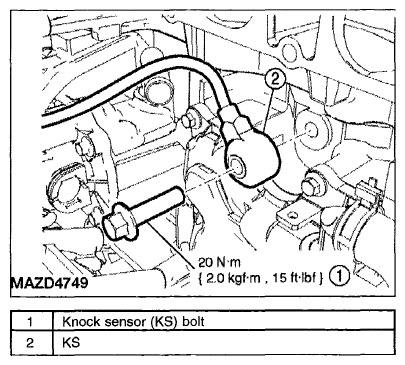

- Remove the bolt and the knock sensor (KS).
- To install, tighten to 20 N.m {2.0 kgf.m, 177 in.lbf}.
- To install, reverse the removal procedure.
