Electronic Throttle Body Control (Etc) Removal/Installation - 2.5L
WARNING:
- Do not smoke, or carry lighted tobacco or any have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
- Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

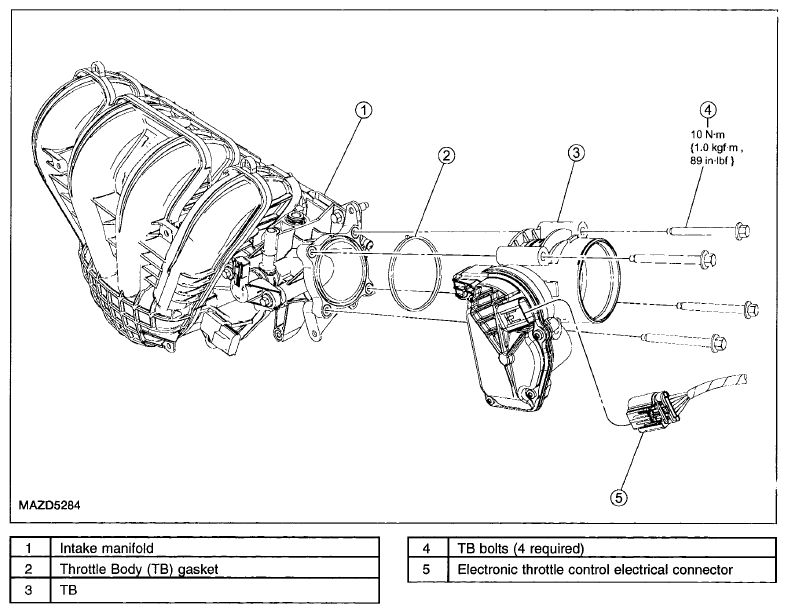

- Disconnect the battery ground cable. See BATTERY DISCONNECT .
- Remove the Air Cleaner outlet pipe. See AIR CLEANER OUTLET PIPE REMOVAL/INSTALLATION - 2.5L .
- Disconnect the electrical throttle control electrical connector.
- Remove the 4 bolts and the Throttle Body (TB).
- Discard the TB gasket
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
- To install, reverse the removal procedure.
- Install a new TB gasket.
