Home >> Mazda >> 2009 >> Tribute s Touring, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Crankshaft Position (CKP) Sensor Removal/Installation - 2.5L >> Notes

Crankshaft Position (CKP) Sensor Removal/Installation - 2.5L: Notes

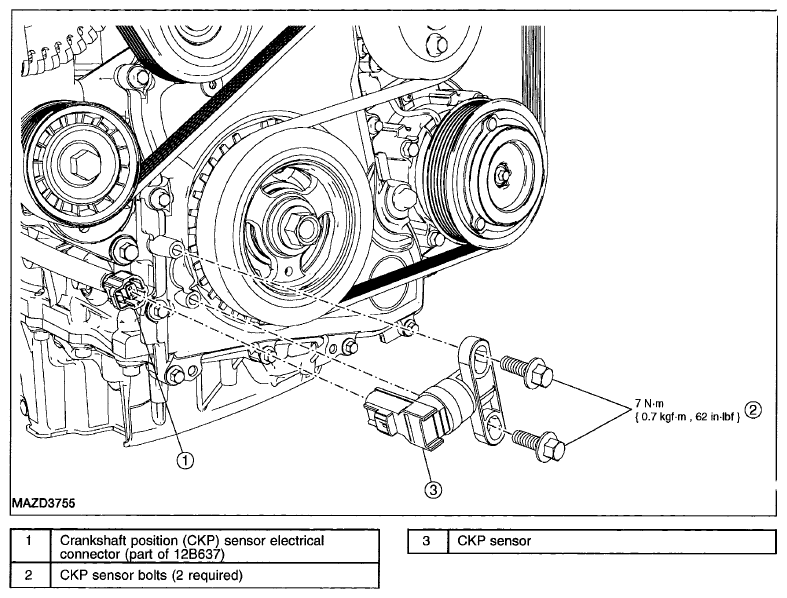

Fig 1: Identifying Crankshaft Position Sensor Removal/Installation - 2.5L

G06157204

Courtesy of MAZDA MOTORS CORP.
