Camshaft Position (CMP) Sensor Removal/Installation - 3.0L

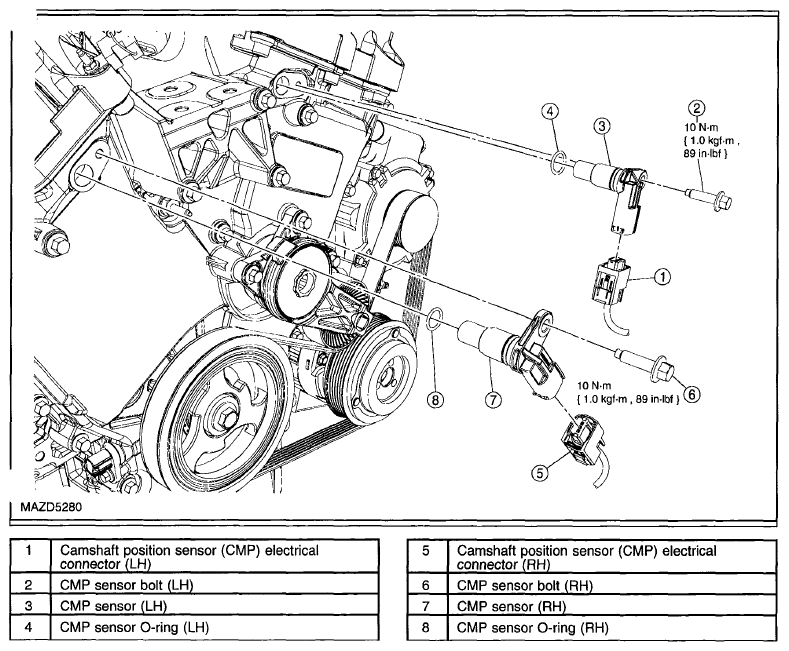

Fig 1: Identifying Camshaft Position Sensor Removal/Installation - 3.0L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the camshaft position sensor (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
   • To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
   • Inspect the O-ring seal and install new as necessary.
3. To install, reverse the removal procedure.
   NOTE:

   • Lubricate the CMP sensor O-ring seal with clean engine oil.
