Camshaft Position (CMP) Sensor Removal/Installation - 2.5L

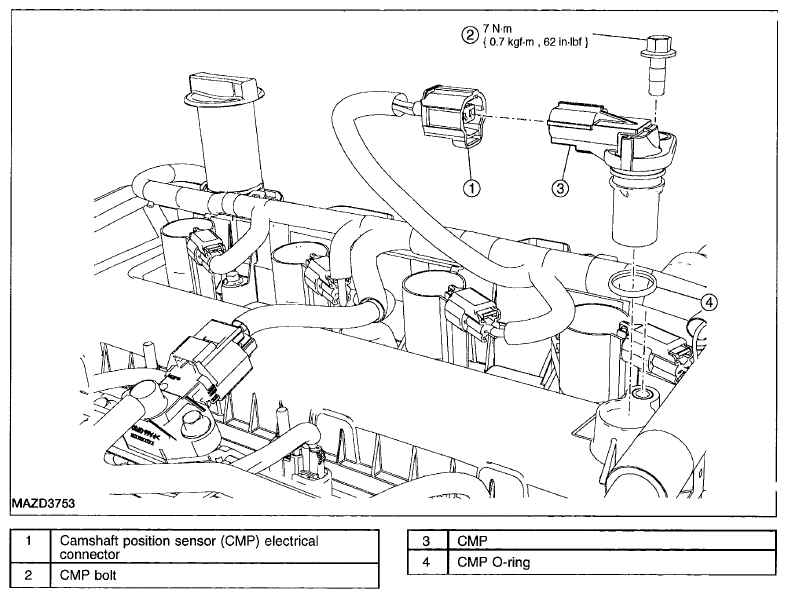

Fig 1: Identifying Camshaft Position Sensor Removal/Installation - 2.5L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
   • To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf}.
   • Inspect the O-ring seal and install new as necessary.
3. To install, reverse the removal procedure.
   NOTE:

   • Lubricate the camshaft position (CMP) sensor O-ring seal with clean engine oil.
