Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

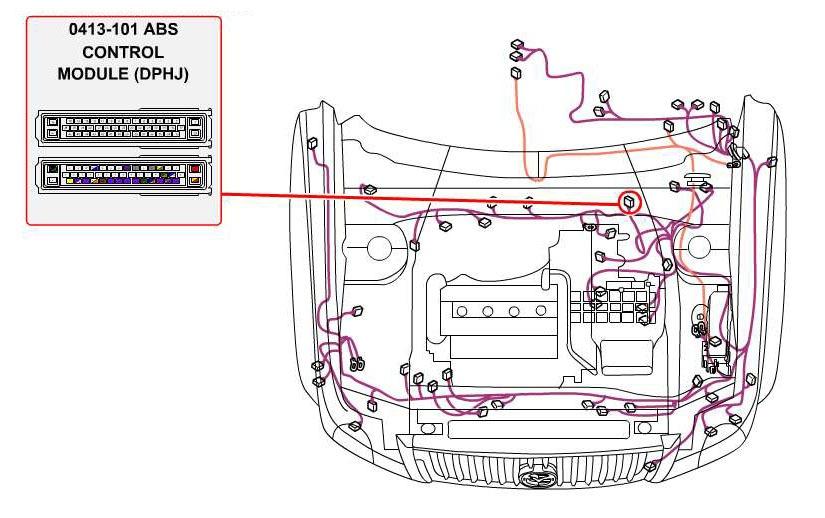

| ABS Control Module | Left rear of engine compartment. See Figure. |

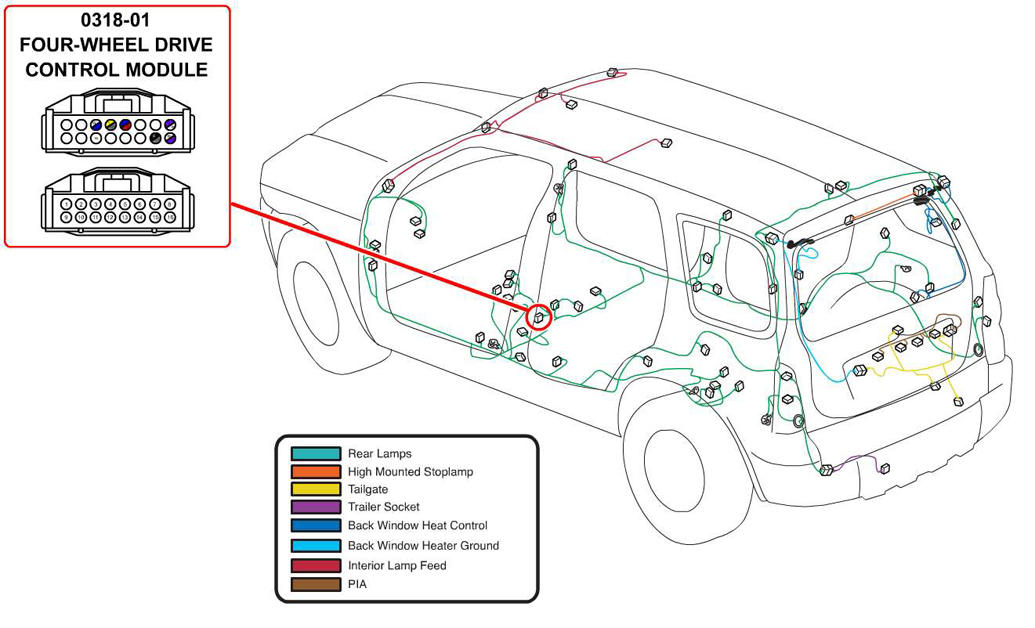

| Four-Wheel Drive Control Module | Near base of driver seat. See Figure. |

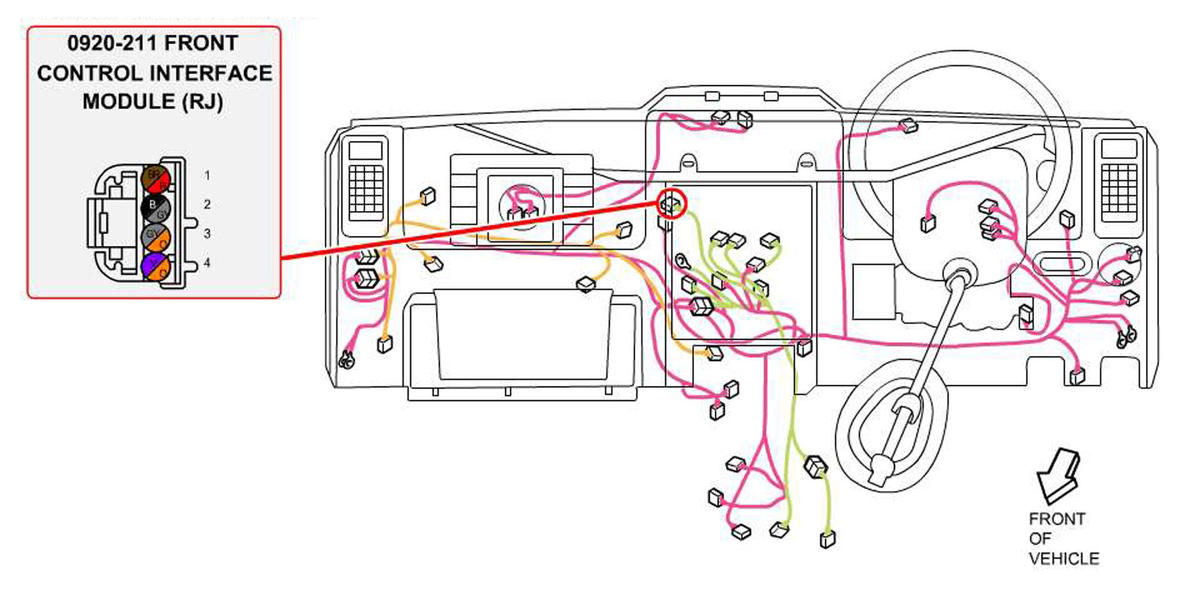

| Front Control Interface Module | Center of dash. See Figure. |

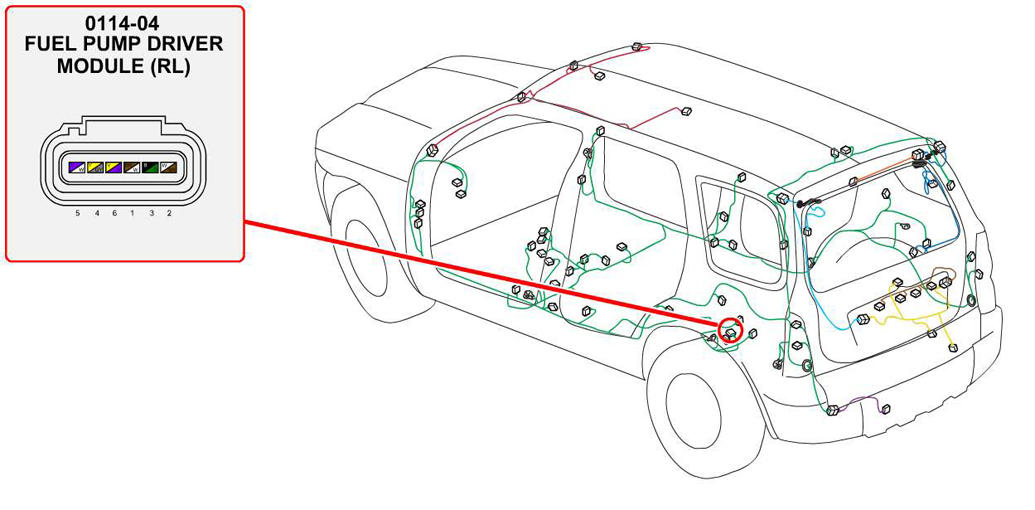

| Fuel Pump Driver Module | Left rear wheelwell. See Figure. |

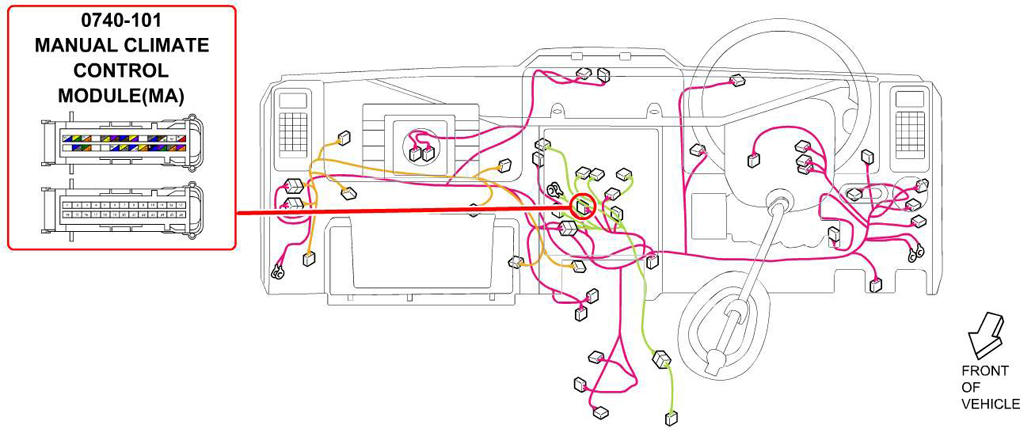

| Manual Climate Control Module | Center of dash. See Figure. |

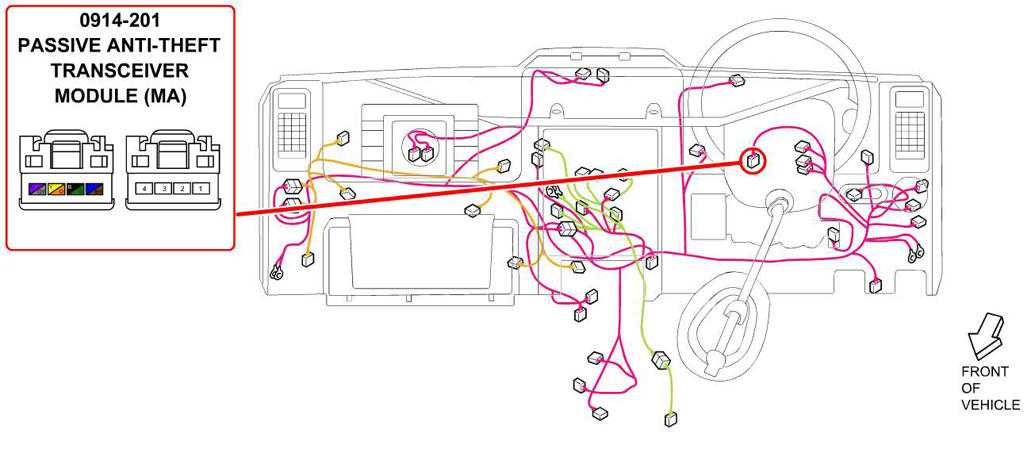

| Passive Anti-Theft Transceiver | Behind lower left side of dash, near steering column. See Figure. |

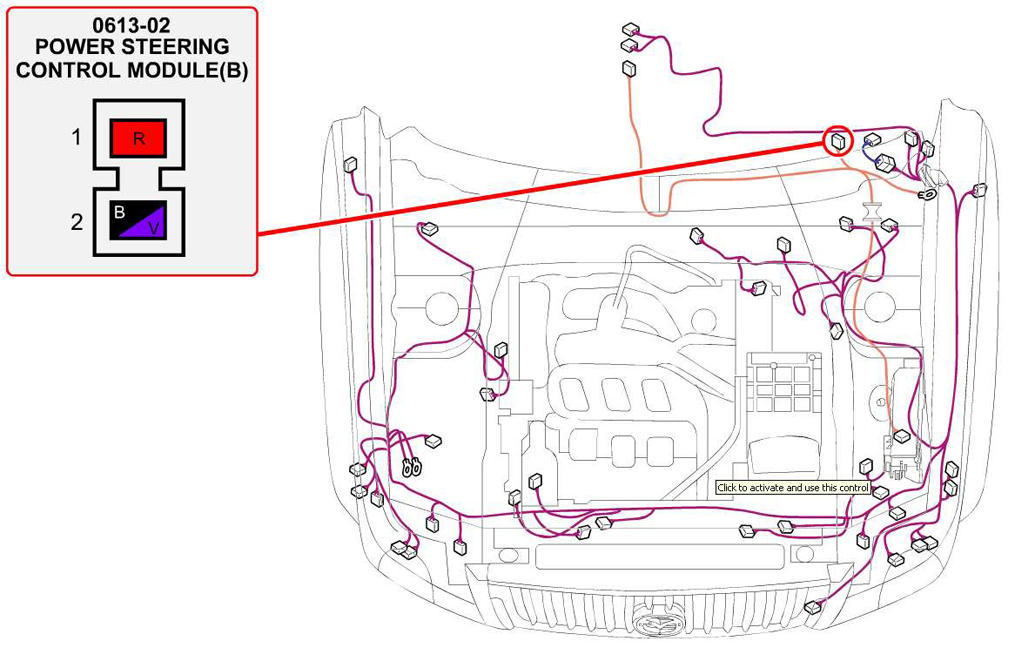

| Power Steering Control Module | Left rear of engine compartment. See Figure. |

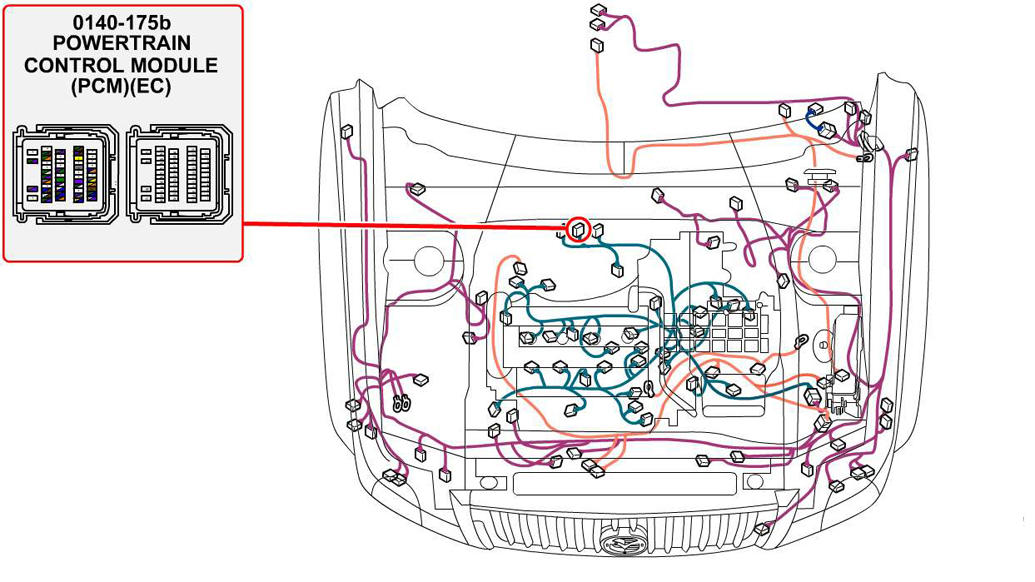

| Powertrain Control Module | Upper center of firewall. See Figure. |

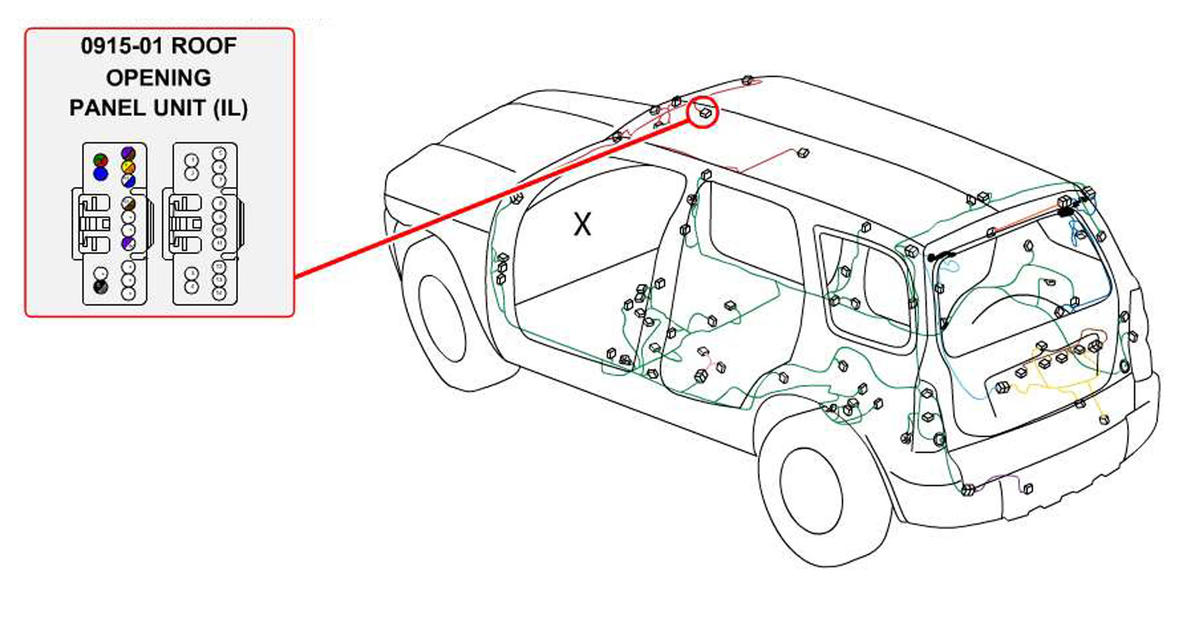

| Roof Opening Panel Unit | Front center of roof. See Figure. |

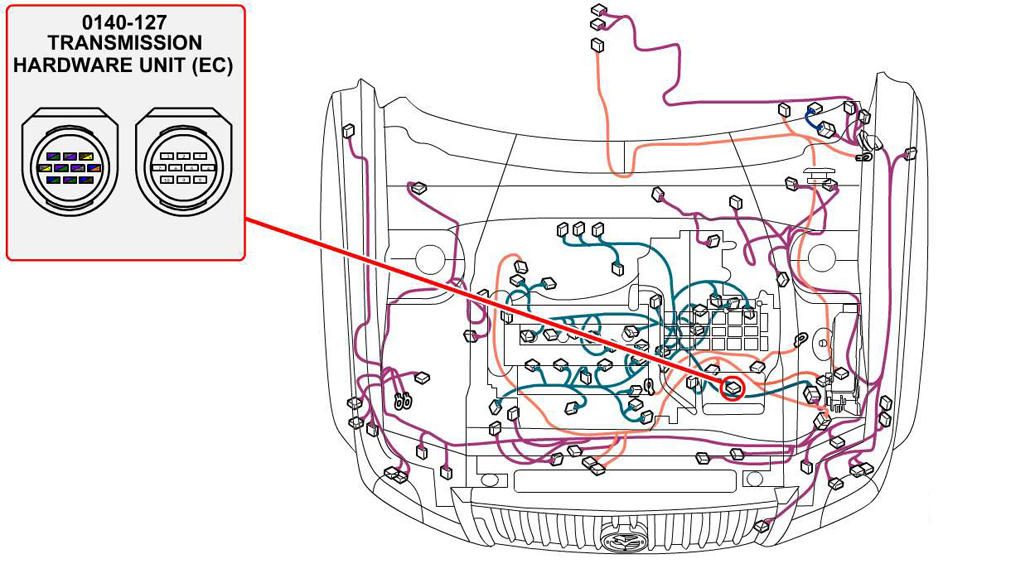

| Transmission Hardware Unit (2.5L) | Left side of engine compartment. See Figure. |

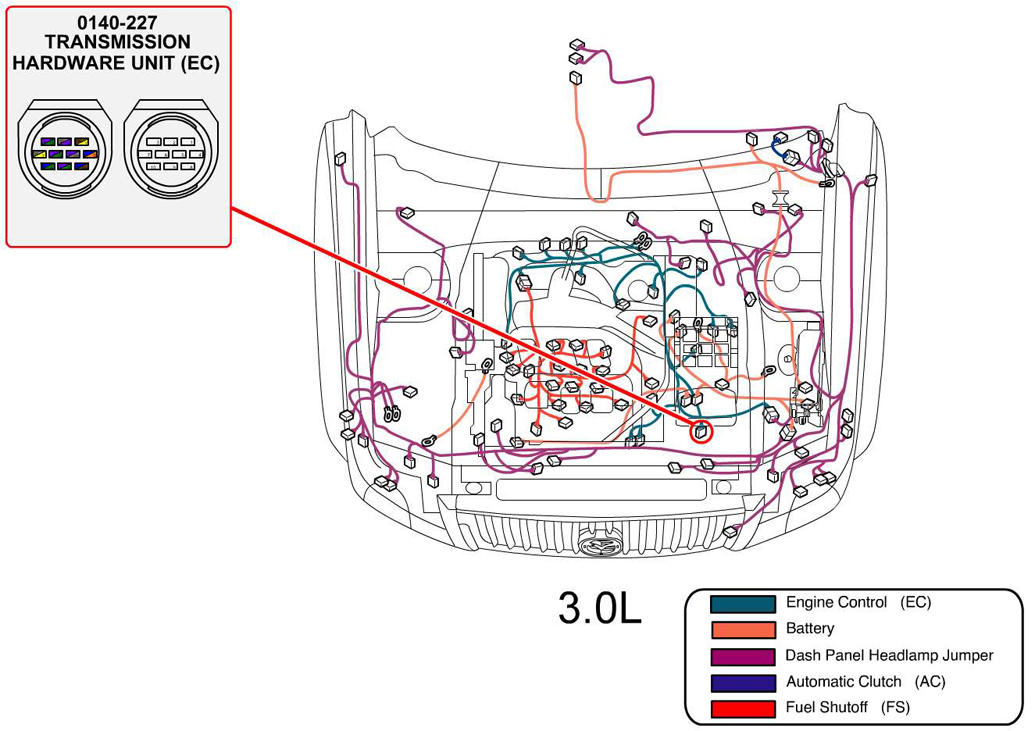

| Transmission Hardware Unit (3.0L) | Left front of engine compartment. See Figure. |
