Stability/Traction Control Switch Removal/Installation

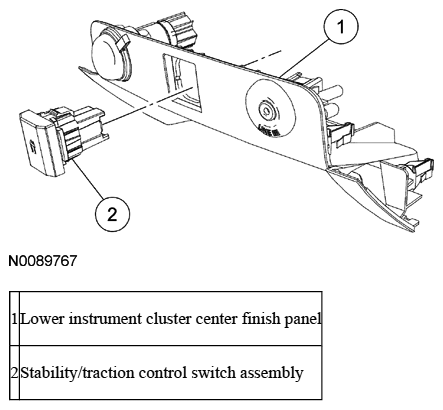

Fig 1: Identifying Lower Instrument Cluster Center Finish Panel And Stability/Traction Control Switch Assembly

Courtesy of MAZDA MOTORS CORP.

1. Remove the lower instrument cluster center finish panel. See INSTRUMENT PANEL CENTER FINISH PANEL - LOWER REMOVAL/INSTALLATION .
   Fig 2: Identifying Stability/Traction Control Switch Connector

   Courtesy of MAZDA MOTORS CORP.
2. Depress the 2 tabs and remove the stability/traction control switch assembly.
3. To install, reverse the removal procedure.
