- With the vehicle in NEUTRAL, position it on a hoist. See LIFTING
.
NOTE:
The electrical connector is located in the engine compartment.
- Disconnect the electrical connector.
- Remove the grommet from the body.
- When removing the body grommet, rotate the grommet into a position which allows the use of a small screwdriver to release the tabs on the underside of the body grommet. These 2 tabs are located at right angles to the sensor wire.
CAUTION:
Care must be taken during the removal of the grommet to prevent damage. If the grommet is damaged, a new sensor may need to be installed, even though the sensor is functional in all other aspects.

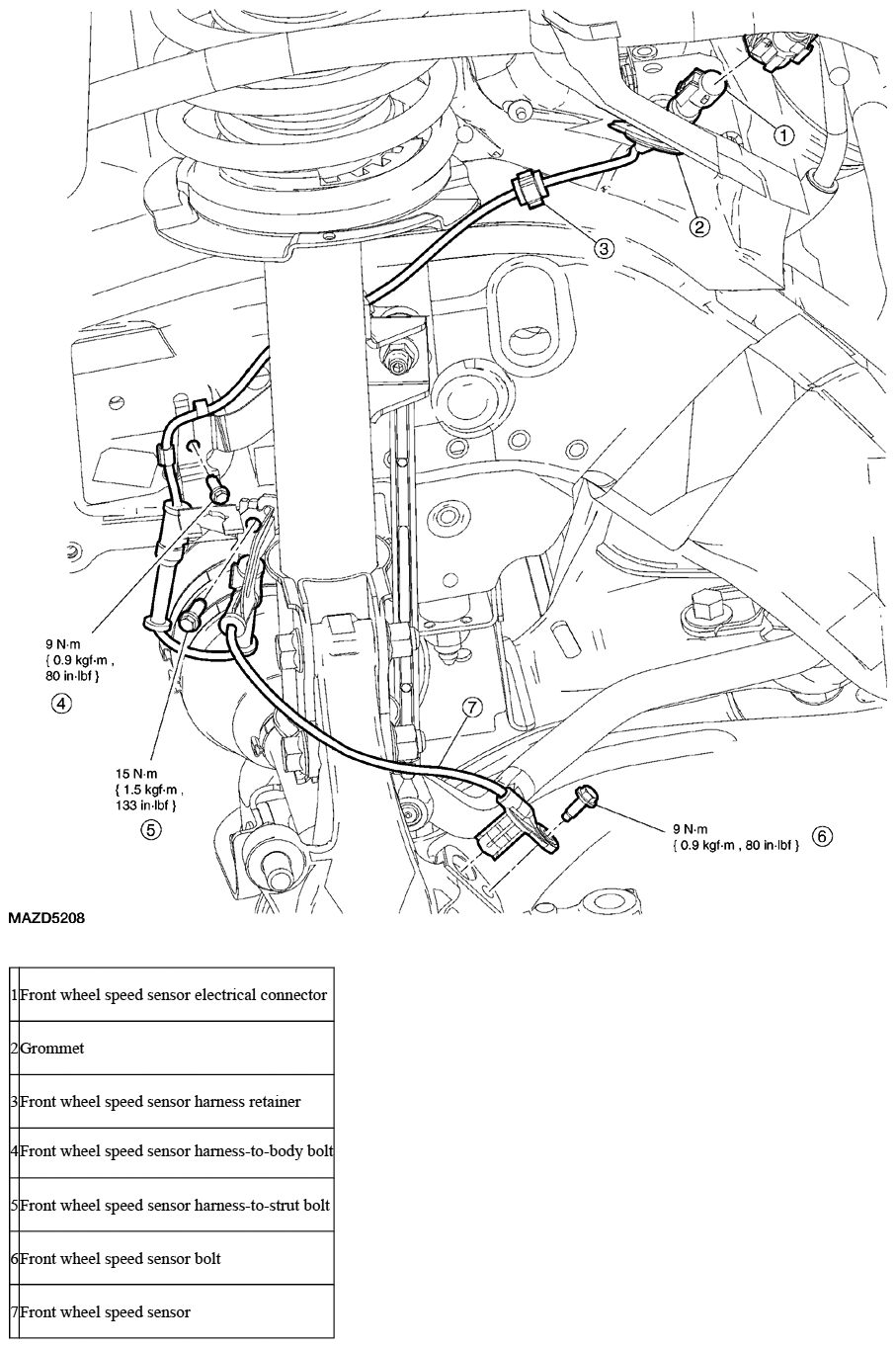

Courtesy of MAZDA MOTORS CORP.
- Remove the front wheel speed sensor harness from the retainer.
- Remove the front wheel speed sensor harness-to-body bolt.
- To install, tighten to 9 N.m {0.9 kgf.m, 80 in.lbf}.
- Remove the front wheel speed sensor harness bolt.
- To install, tighten to 15 N.m {1.5 kgf.m, 133 in.lbf}.
- Remove the front wheel speed sensor bolt from the wheel knuckle.
- To install, tighten to 9 N.m {0.9 kgf.m, 80 in.lbf}.
NOTE:
Clean off any foreign material that may have collected around the sensor before removal.
- Remove the front wheel speed sensor.
- To install, reverse the removal procedure.
NOTE:
Thoroughly clean the mounting surface.
