Input Shaft Disassembly/Assembly: Assembly
WARNING: This page is about a different variant/trim than selected.

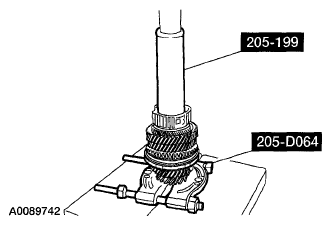

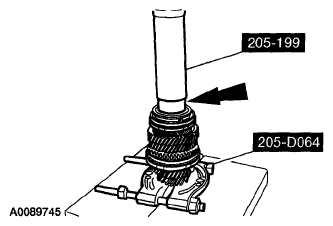

- Using the Input Bearing Installer and the Spindle/Axle Shaft Installer with the Bearing Puller, install the input shaft front bearing.
- Install the 3rd gear needle bearing.
- Install the 3rd input gear.
- Install the 3rd gear synchronizer ring.

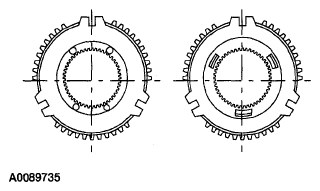

- Install a new 3rd and 4th gear synchronizer assembly.
- Install the 4th gear synchronizer ring.

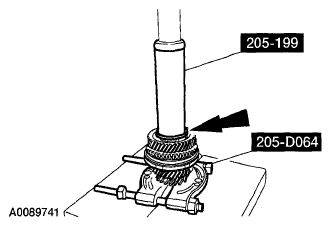

- Using the Spindle/Axle Shaft Installer with the Bearing Puller, install the 4th gear bushing.
- Install the 4th gear needle bearing.
- Install the 4th input gear.
- Select the correct thickness thrust washer.

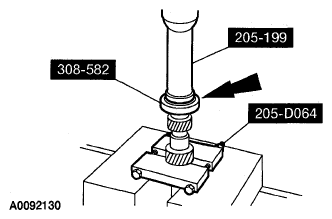

- Using the Spindle/Axle Shaft Installer with the Bearing Puller, press on the thrust washer.

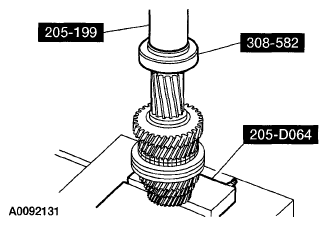

- Using the Spindle/Axle Shaft Installer with the Bearing Puller, press on a new 5th gear bushing.
- Install the 5th gear needle bearing.
- Install the 5th input gear.
- Install a new 5th gear synchronizer ring.

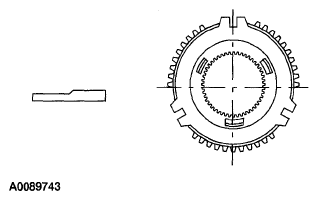

- Install a new 5th gear synchronizer assembly.
- Using the Spindle/Axle Shaft Installer with the Bearing Puller, install the 5th gear stopper and input shaft bearing spacer together.
- Install the input shaft spacer.

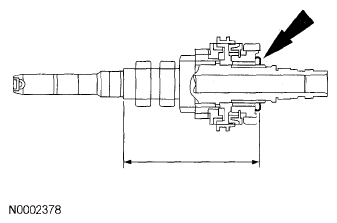

- Install new snap ring. Measure the gap between the snap ring groove and the snap ring. The end play should be between 0-0.1 mm (0-0.0039 in). Refer to GEAR SPECIFICATION for the correct snap ring thickness.GEAR SPECIFICATION

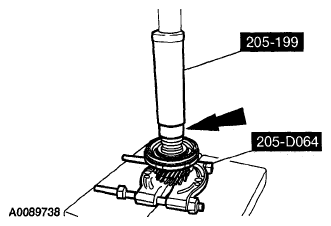

mm inch 1.71 0.067 1.76 0.069 1.81 0.071 1.86 0.073 1.91 0.075 1.96 0.077 2.01 0.079 2.06 0.081 2.11 0.083 2.16 0.085 2.21 0.087 2.26 0.088 - Using the Spindle/Axle Shaft Installer with the Bearing Puller, press on the input shaft rear bearing.
- Install the oil channel.
