Connector End Views - Engine Cooling

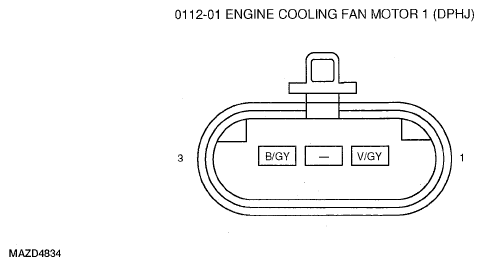

Fig 1: Identifying 0112-01 Engine Cooling Fan Motor 1 (DPHJ) Connectors
G05463785Courtesy of MAZDA MOTORS CORP.

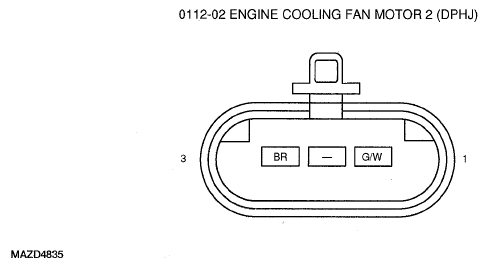

Fig 2: Identifying 0112-02 Engine Cooling Fan Motor 2 (DPHJ) Connectors
G05463786Courtesy of MAZDA MOTORS CORP.

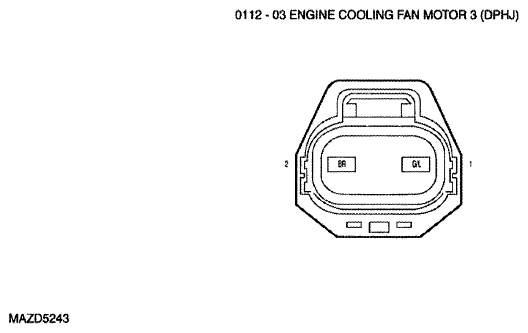

Fig 3: Identifying 0112-03 Engine Cooling Fan Motor 3 (DPHJ) Connectors
G06159227Courtesy of MAZDA MOTORS CORP.
